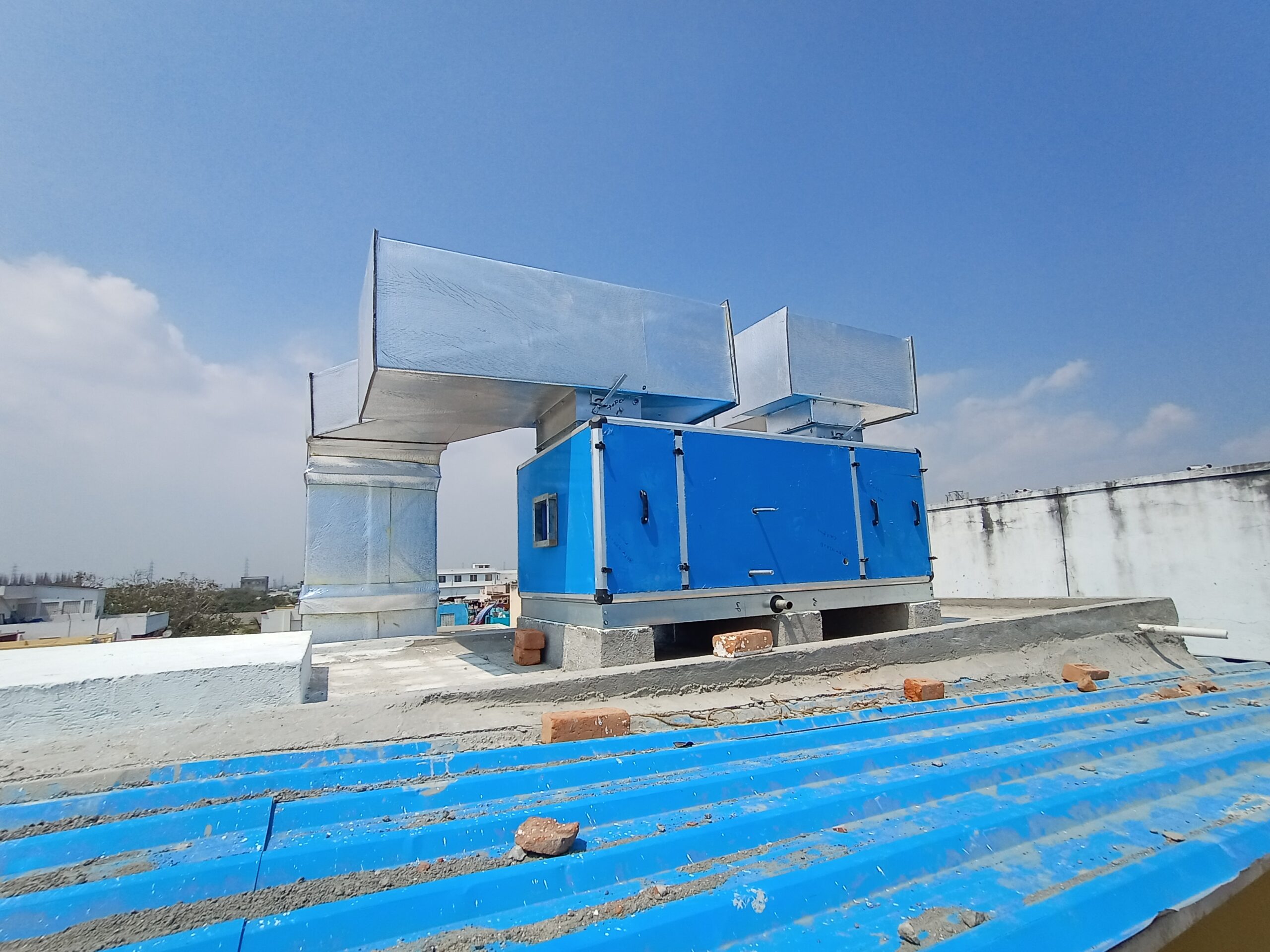

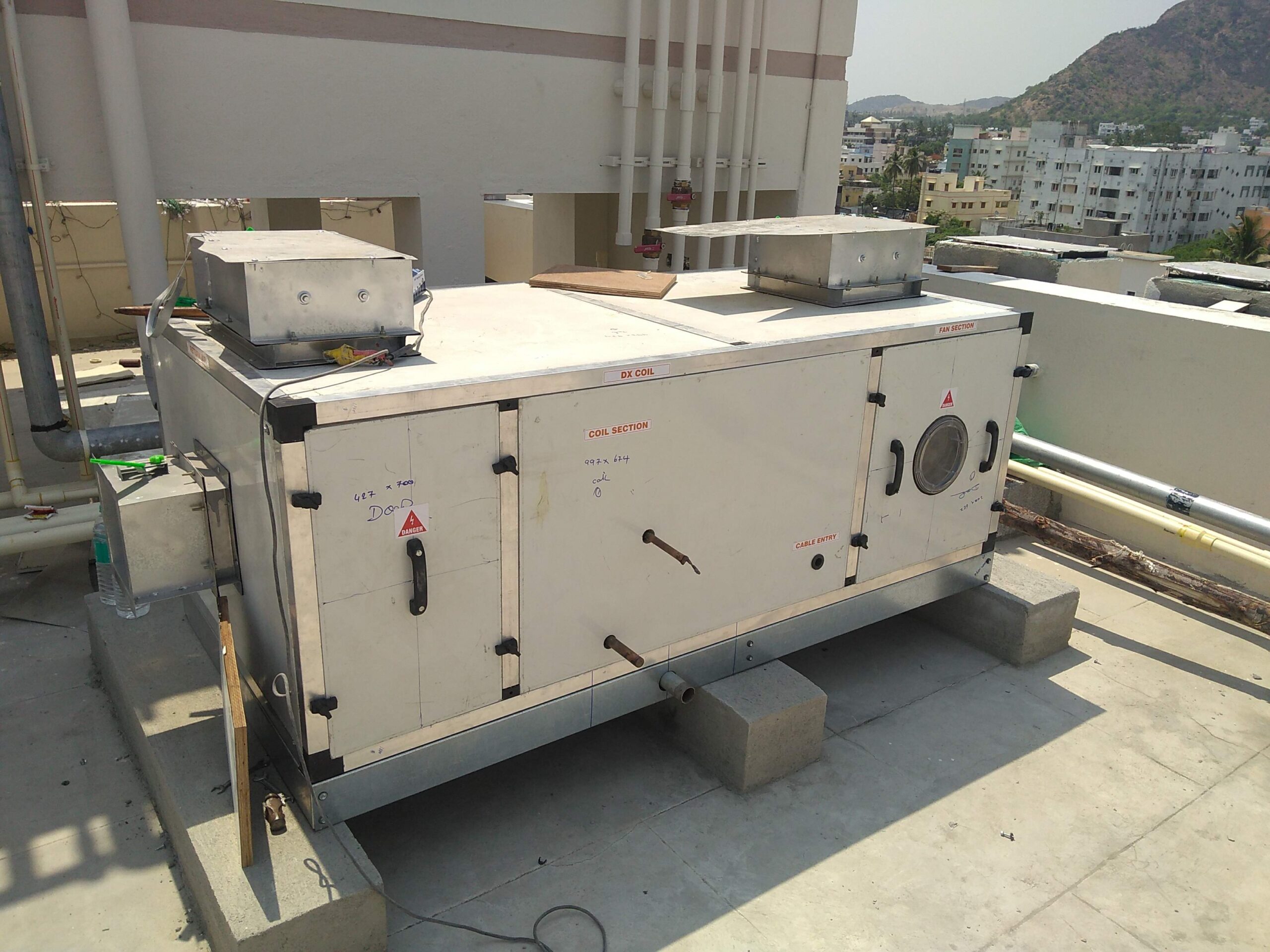

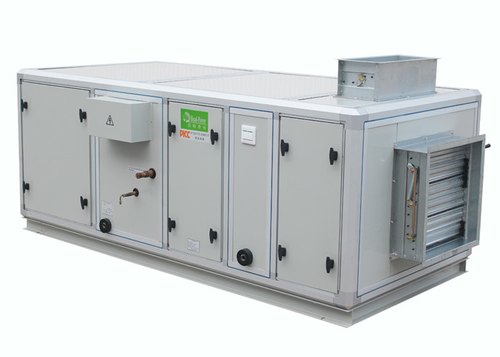

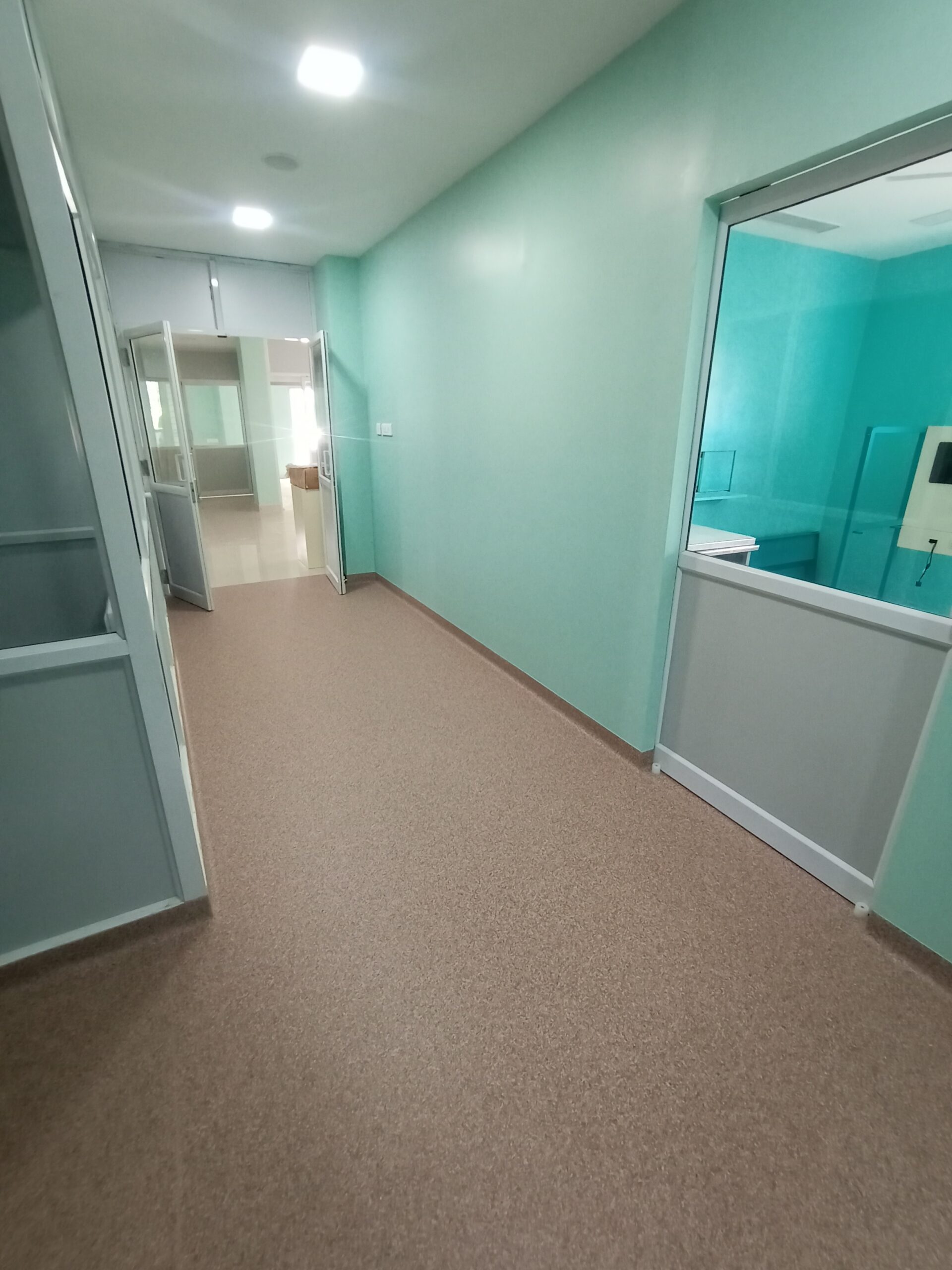

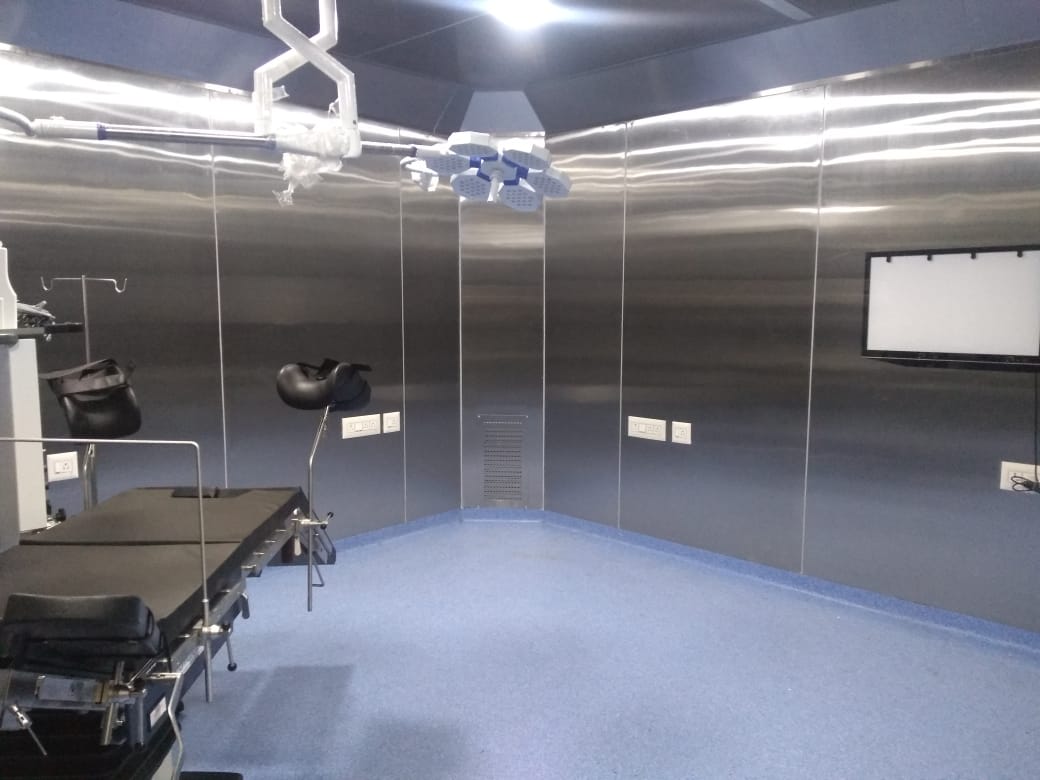

AHU Specification
An air handler, or air handling unit (often abbreviated to AHU), is a device used to regulate and circulate air as part of a heating, ventilating, and air-conditioning (HVAC) system An air handler is usually a large metal box containing a blower, heating or cooling elements, filter racks or chambers, sound attenuators, and dampers. Air handlers usually connect to a ductwork ventilation system that distributes the conditioned air through the building and returns it to the AHU. Sometimes AHUs discharge (supply) and admit (return) air directly to and from the space served without ductwork. We are Providing from 1200CFM – 40,000 CFM.
Outer skin : 0.6 mm PP GI Sheet
Inner Skin : 0.6 mm Plain GI Sheet
Frame work : 50 mm Thermal Break Profile
Panel Insulation : PU FOAM (40±2 kg/m3)
Drain pan Type : S.S Drain Pan
Unit Mounting : Floor Mounted
Unit Base : 2.0 mm Plain G.I
Coil Type : DX Coil
Material of Tube : Copper
Tube Dia (mm / inch) : 3/8″
Fin Material : Aluminium
Header Material : Copper
No. of Fins per inch (FPI) : 12-14

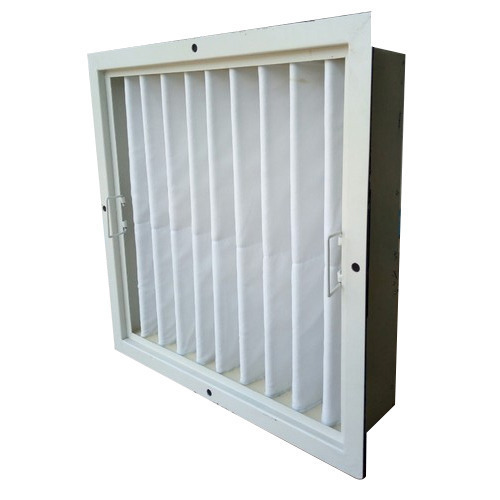

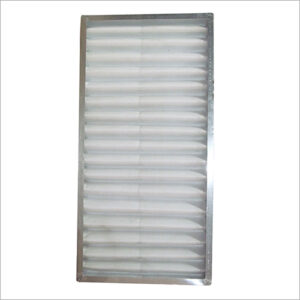

Filter Type : Pre-Filter & Fine filter
Efficiency of Filter : 10 Microns & 5 Microns
Fan make : Kruger/Nicotra
Fan type : DIDW backward curved
Motor make : ABB/Siemens/CG
Motor Type : TEFC-IP55-CLASS F
TSP (mm) : 80 – 125
Product Gallery

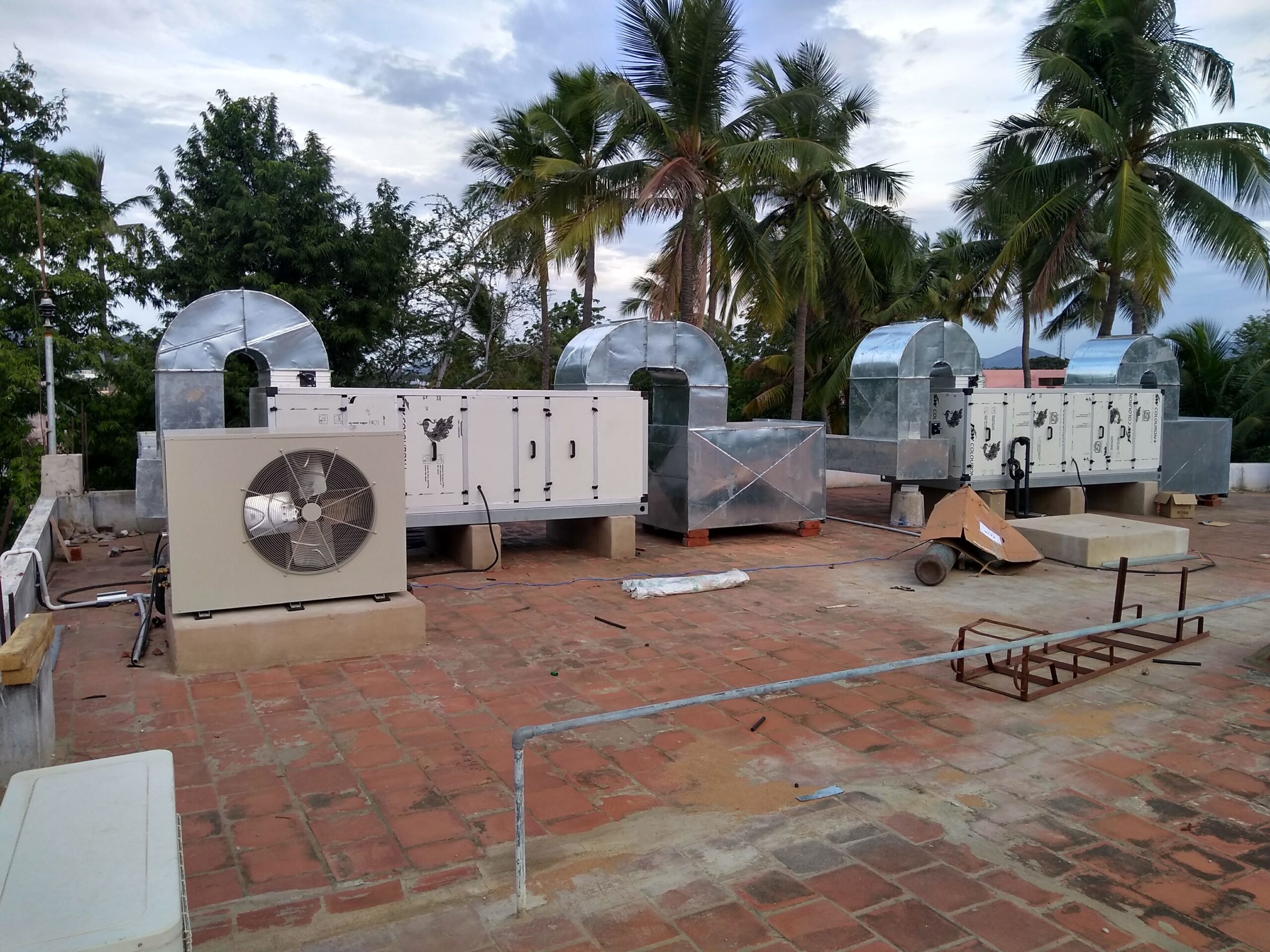

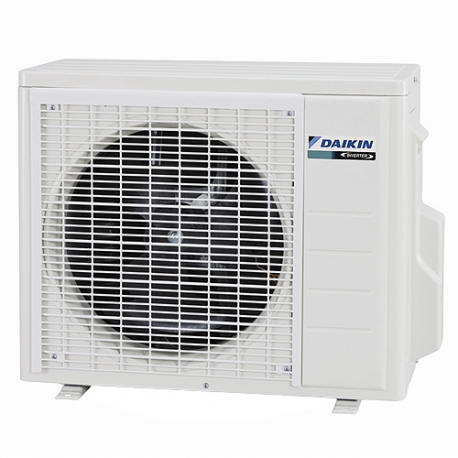

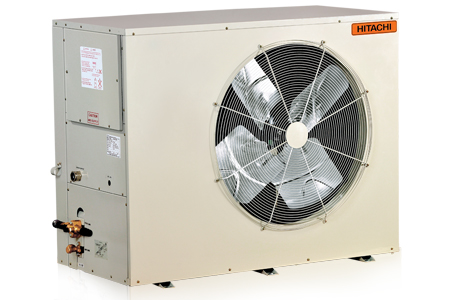

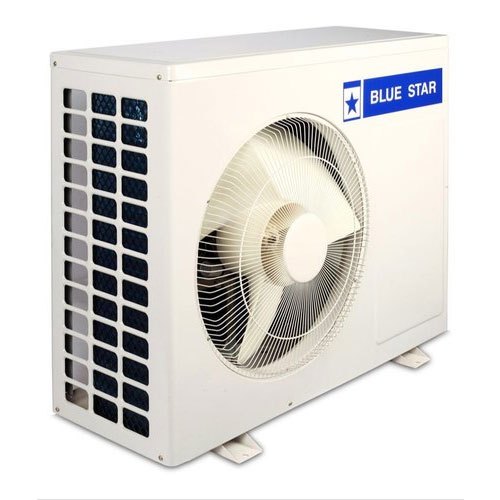

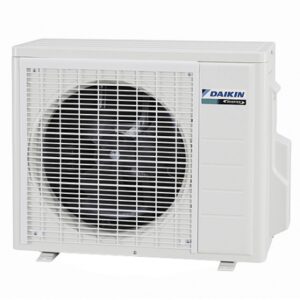

Outdoor Specification

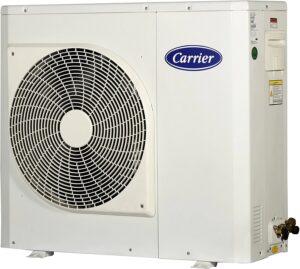

Air conditioning, often abbreviated as A/C is the process of removing heat from an enclosed space to achieve a more comfortable interior environment. Air conditioning is a member of a family of systems and techniques that provide heating, ventilation, and air conditioning (HVAC). Based on requirement capacity of Tonnage varies from 3 ton to 16 ton per numbers. It comes in Single or double compressor.
Capacity | 3 Ton – 16Ton |
Frequency | 50 Hz |
Voltage | 420-440 V |
Features | Energy Savings,Fast Cooling,Low Noise Level |
Coil Material | Copper |
AC Type | Ductable AC |
Refrigerent R410A
No of compressor 1 or 2
Product Gallery

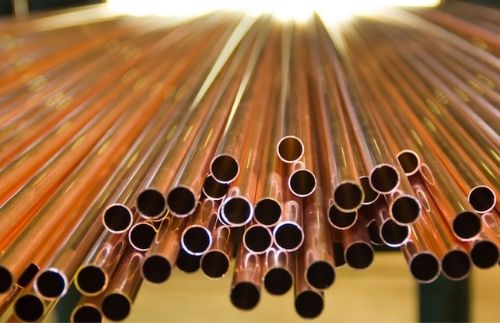

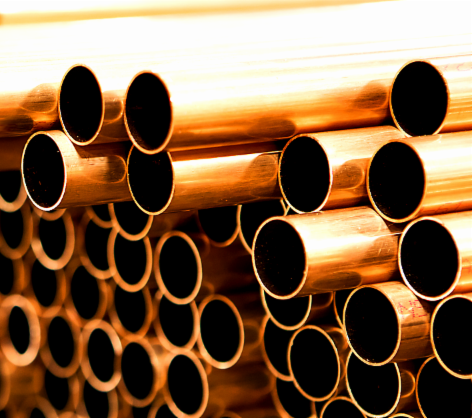

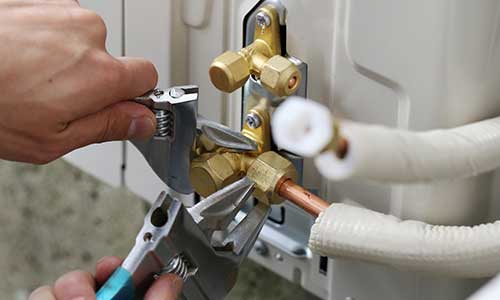

Copper Pipes Specification

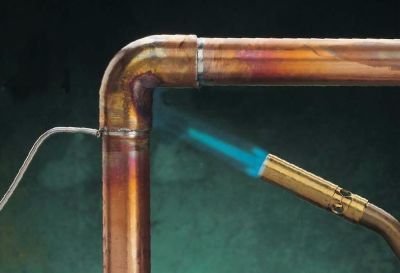

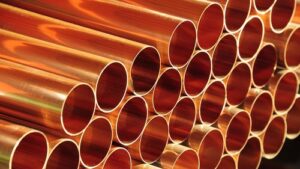

Copper tubing is most often used for heating systems and as a refrigerant line in HVAC systems. Copper offers a high level of corrosion resistance. Two copper pipes are joint by expert welder. Based on AHU and Outdoor Configuration copper pipes size are very.
Product Gallery

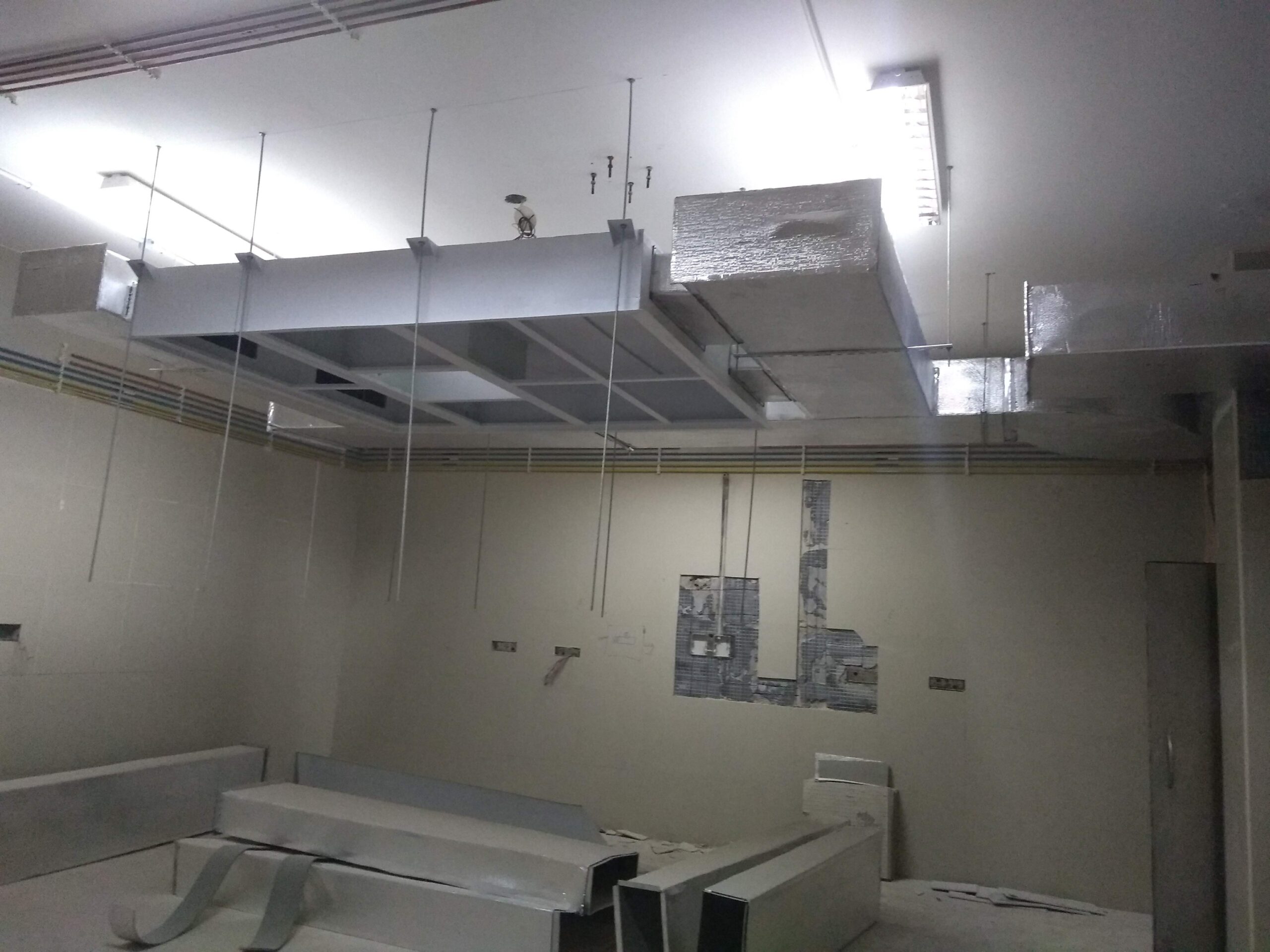

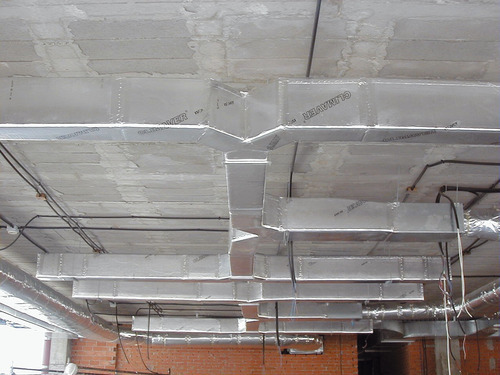

Duct Fabrication Specification

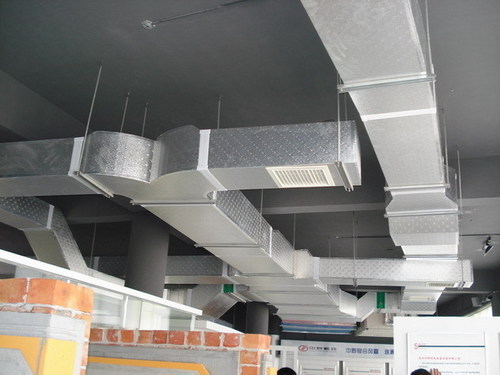

Ducts are conduits or passages used in heating, ventilation, and air conditioning (HVAC) to deliver and remove air. The needed airflows include, for example, supply air, return air, and exhaust air. Ducts commonly also deliver ventilation air as part of the supply air. As such, air ducts are one method of ensuring acceptable indoor air quality as well as thermal comfort.
A duct system is also called ductwork. Planning (laying out), sizing, optimizing, detailing, and finding the pressure losses through a duct system is called duct design

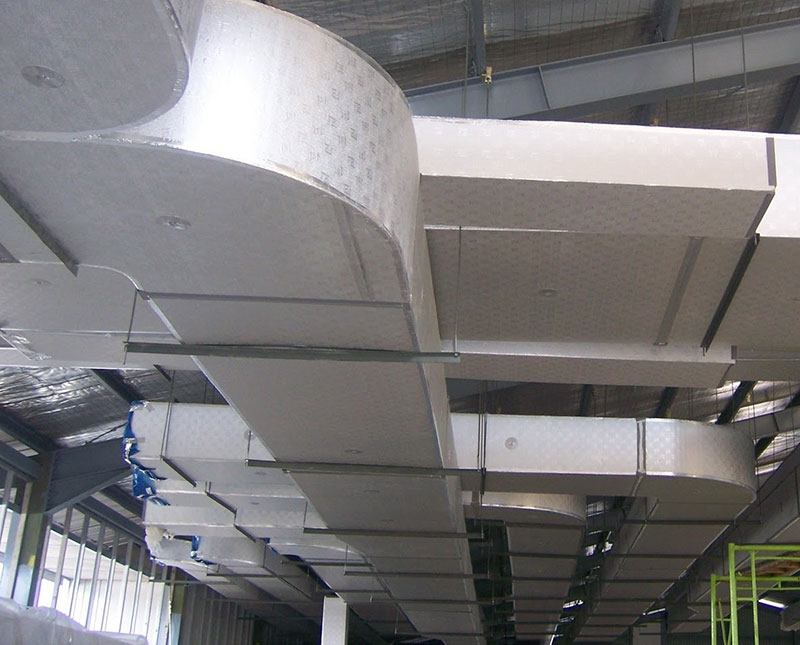

GI Ducting
Galvanized mild steel is the standard and most common material used in fabricating ductwork because the zinc coating of this metal prevents rusting and avoids cost of painting.
Rectangular ductwork commonly is fabricated to suit by specialized metal shops. For ease of handling, it most often comes in 4′ sections (or joints)
Al ducting
Aluminium ductwork is lightweight and quick to install. Also, custom or special shapes of ducts can be easily fabricated in the shop or on site.
Aluminum is also used to make round spiral duct, but it is much less common than galvanized steel.
Product Gallery

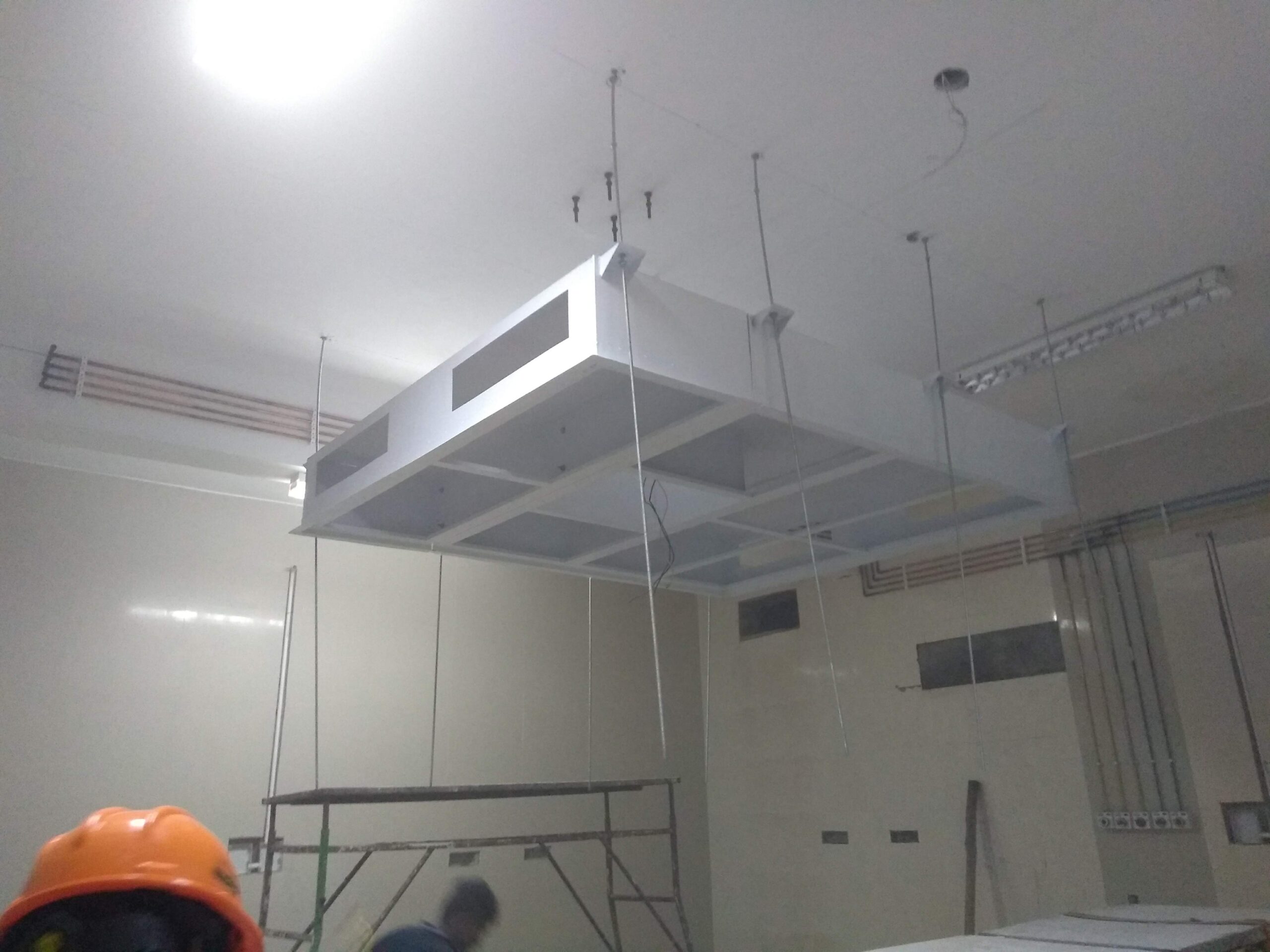

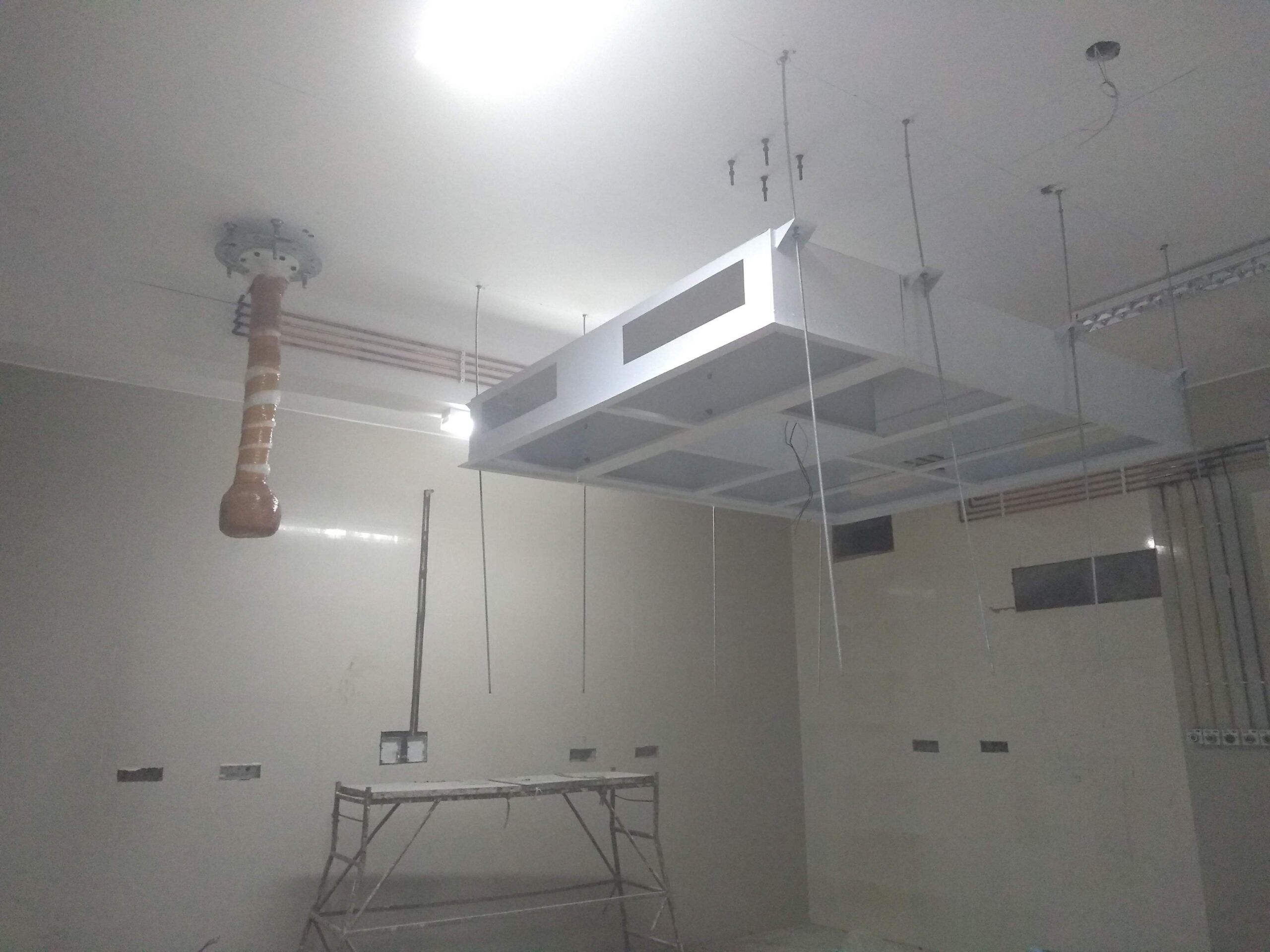

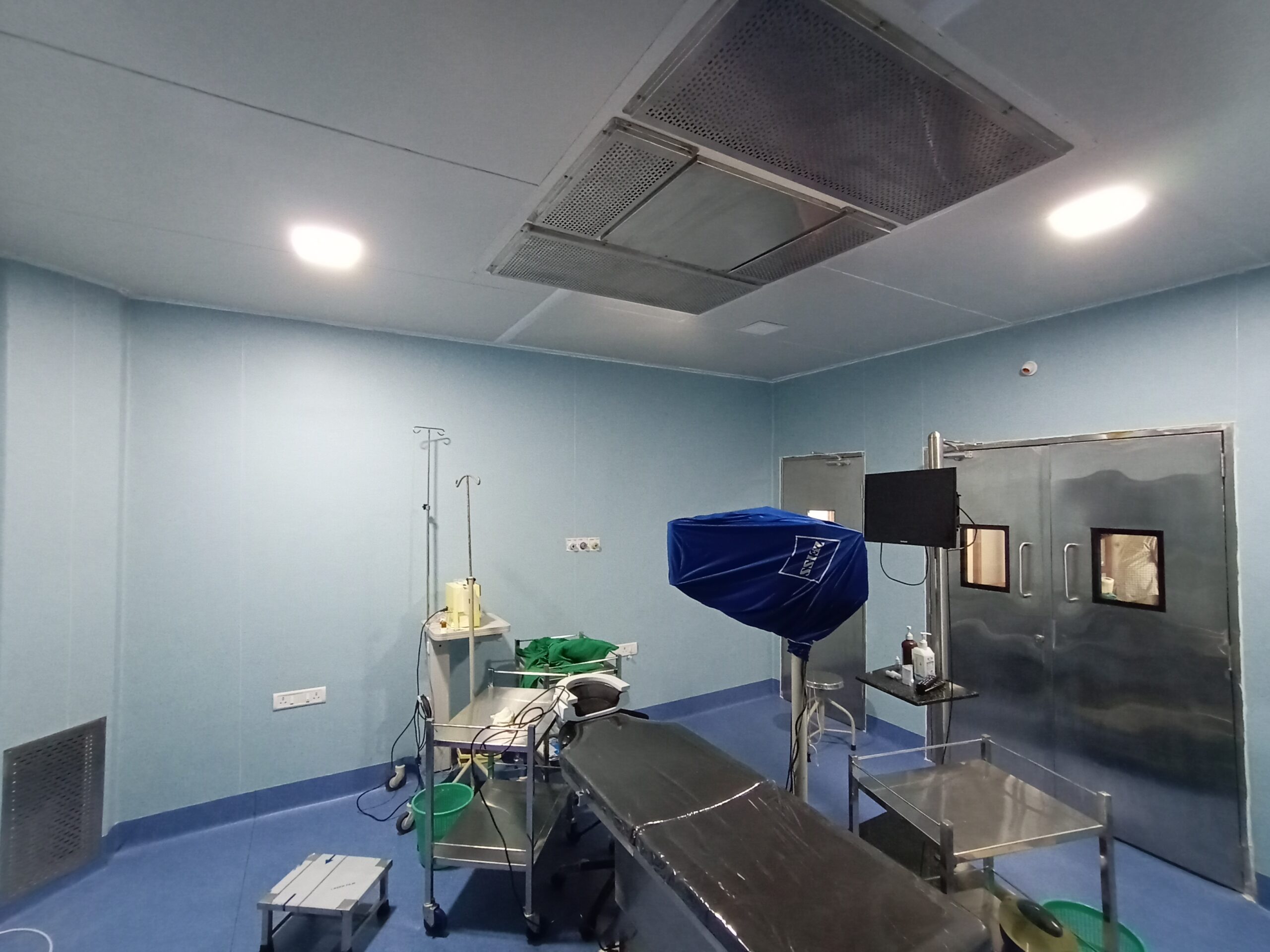

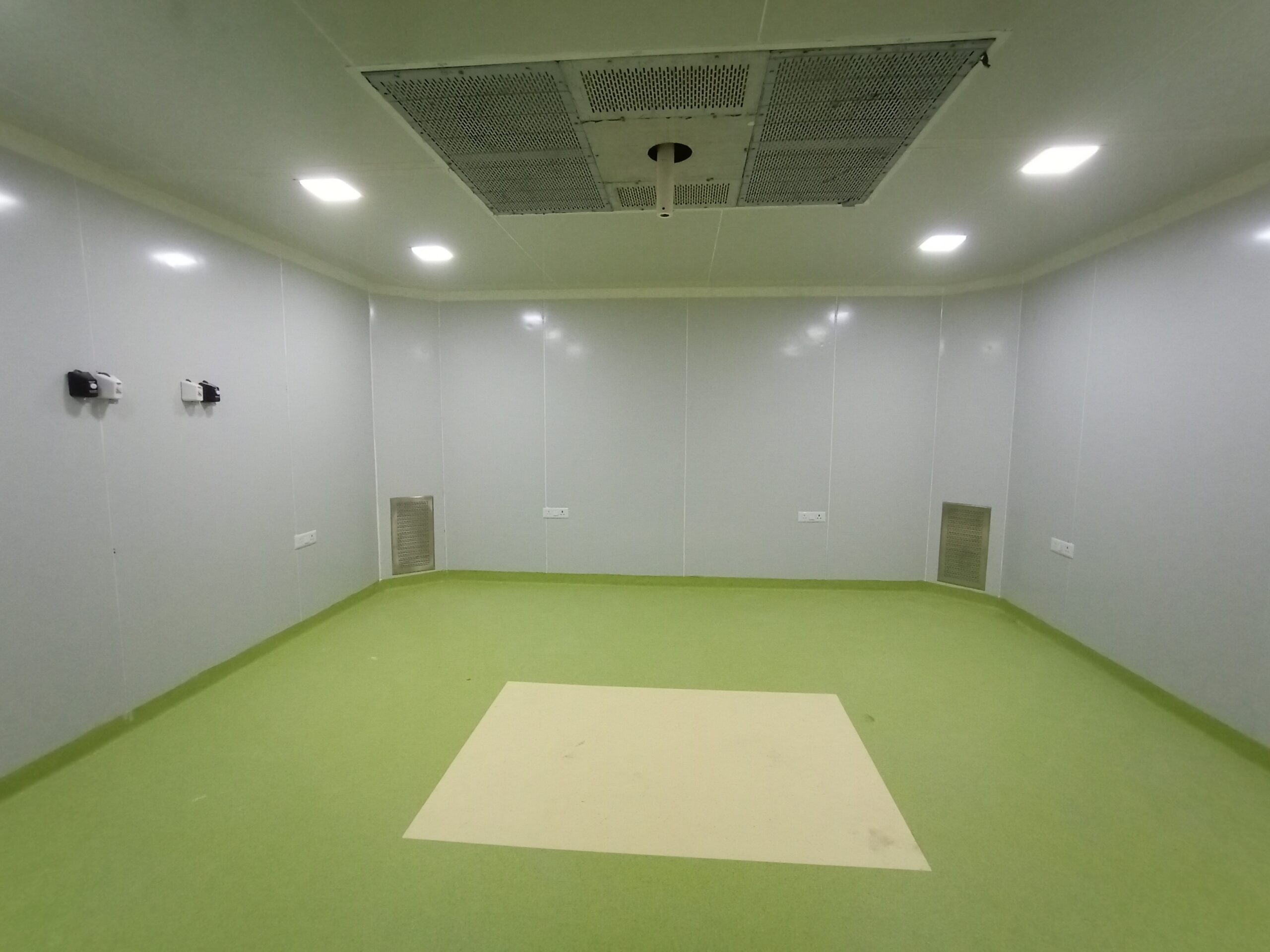

Filter Box Specification

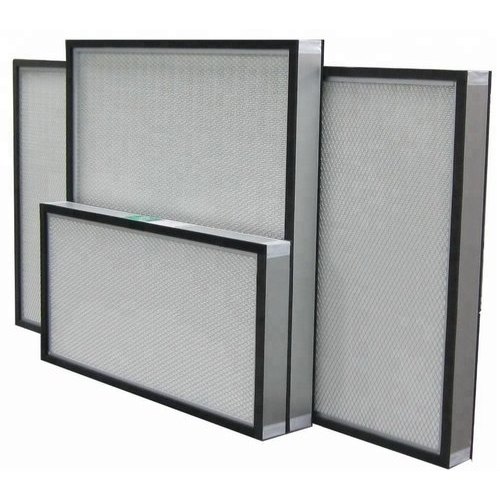

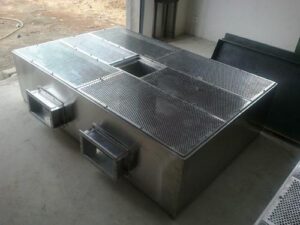

HEPA diffuser is an ideal air fitlering terminal for the clean room or clean workshop.
It consists of plenum box,hepa filter, short air inlet tube and outlet air diffuser board etc.
These series are terminal filter equipments of purification workshop, the shell is made of premium cooled steel plate, static on the surface by spraying; HEPA filter airflow outlet maintain the qulity, the flow and the direction of the air and prevent eddy current from happening; great appearance; less investment; simple structure.
It has an attractive structure, good sealing property and is convenient for both mounting and air volume.The plenum box has both the heat and sound insulating material,which not only purifies the environment, but also has noise elimnination effect.
Therefore, it is especially suitable to apply in industries such as micro-electronics, research, precision machinery, medical care, biochemistry and pharmacy etc.
Product Gallery

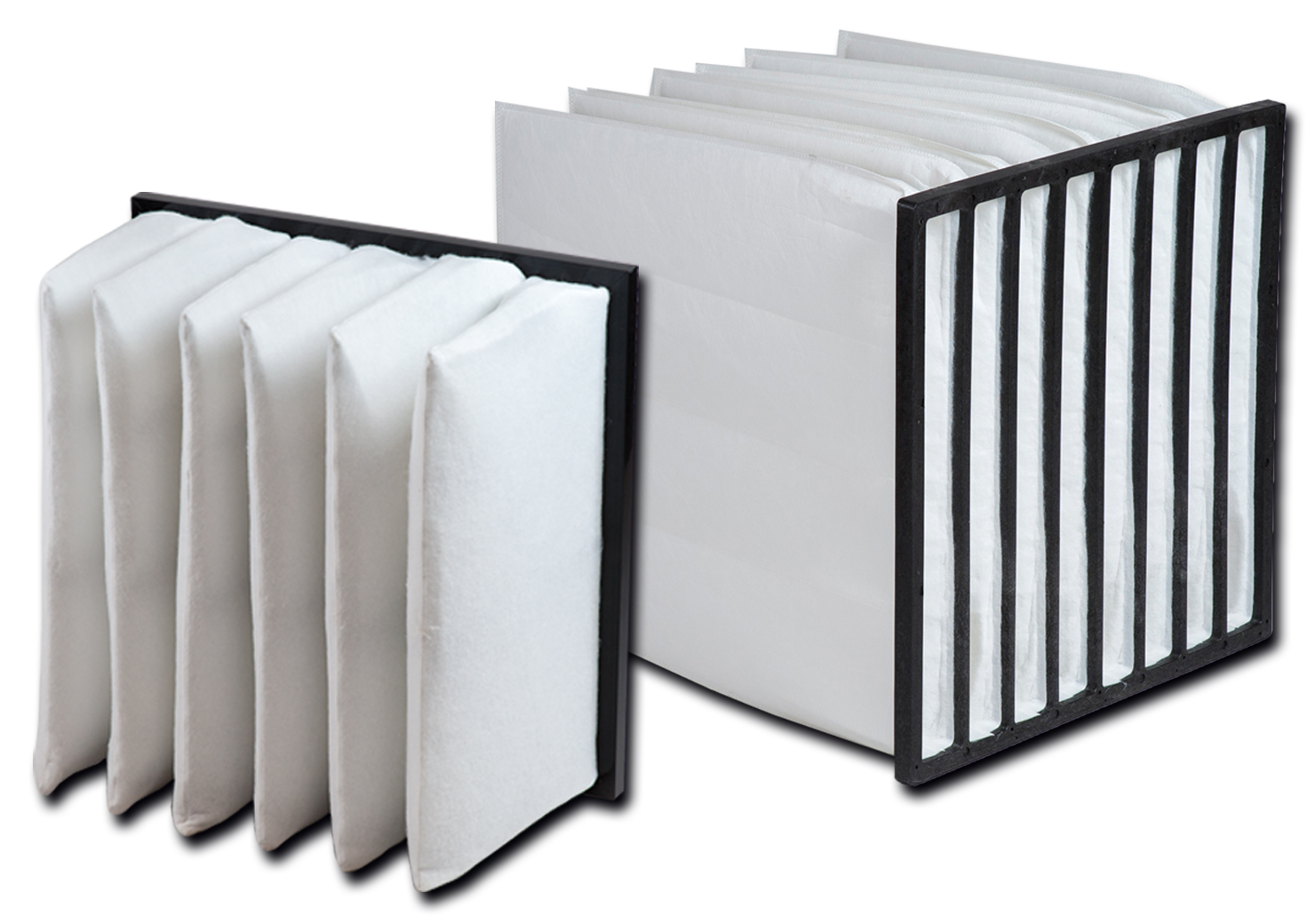

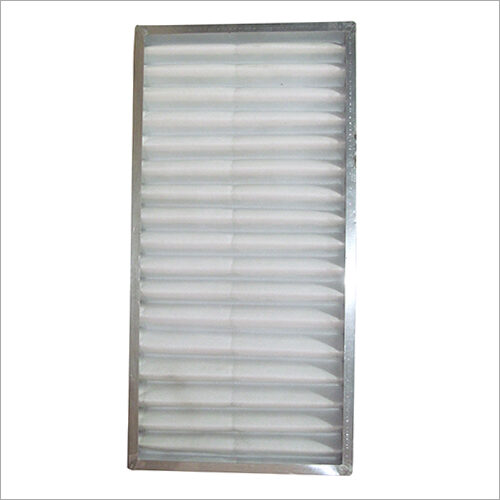

Filters Specification
HEPA (high-efficiency particulate air) filter also known as high-efficiency particulate absorbing filter and high-efficiency particulate arrestance filter, is an efficiency standard of air filters.[3]
Filters meeting the HEPA standard must satisfy certain levels of efficiency. Common standards require that a HEPA air filter must remove—from the air that passes through—at least 99.97% of particles whose diameter is equal to 0.3 μm, with the filtration efficiency increasing for particle diameters both less than and greater than 0.3 μm. HEPA filters capture pollen, dirt, dust, moisture, bacteria (0.2-2.0 μm), virus (0.02-0.3 μm), and submicron liquid aerosol (0.02-0.5 μm). Some microorganisms, for example, Aspergillus niger, Penicillium citrinum, Staphylococcus epidermidis, and Bacillus subtilis are captured by HEPA filters with photocatalytic oxidation (PCO). A HEPA filter is also able to capture some viruses and bacteria which are ≤0.3 μm. A HEPA filter is also able to capture floor dust which contains bacteroidia, clostridia, and bacilli.
Product Gallery

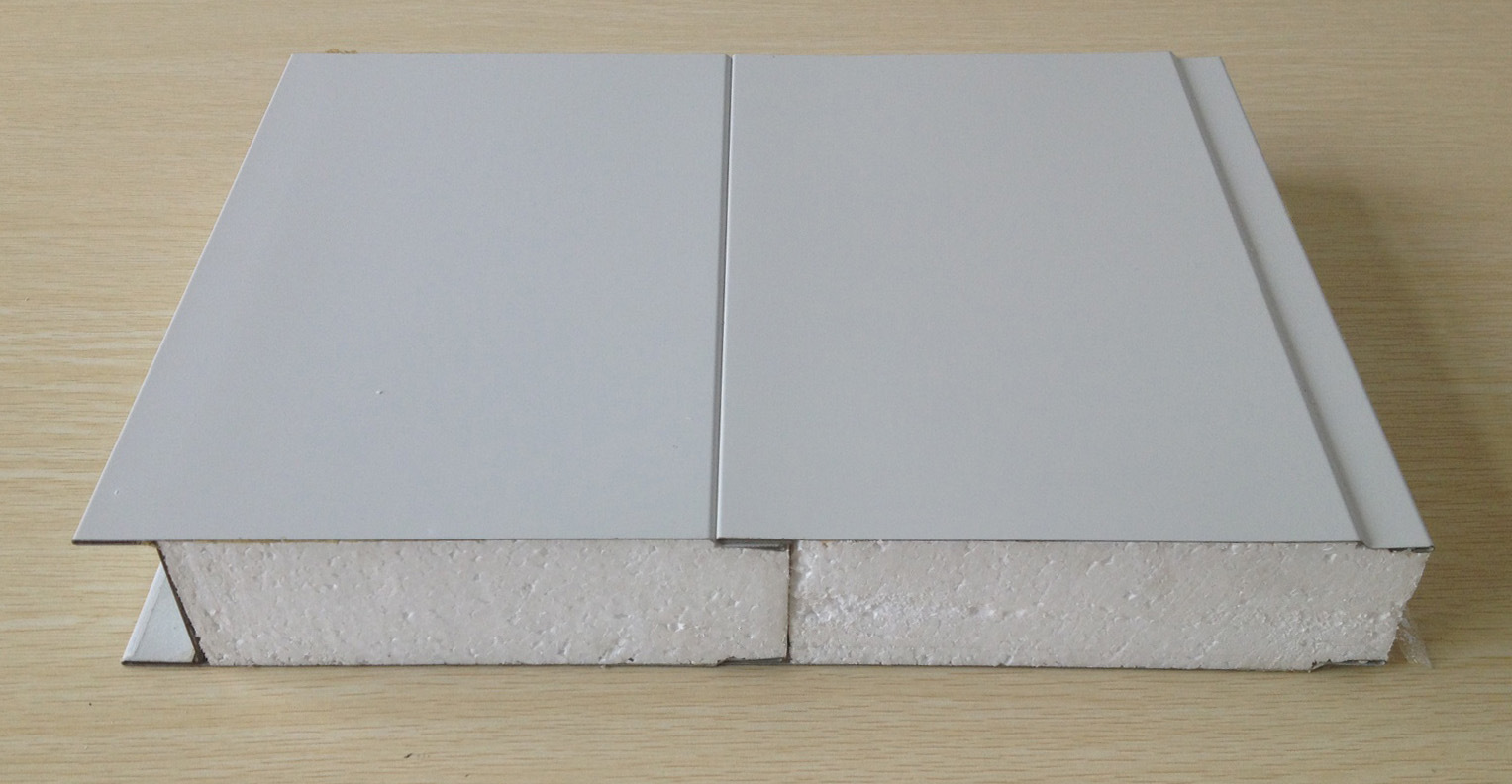

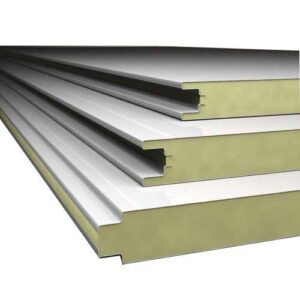

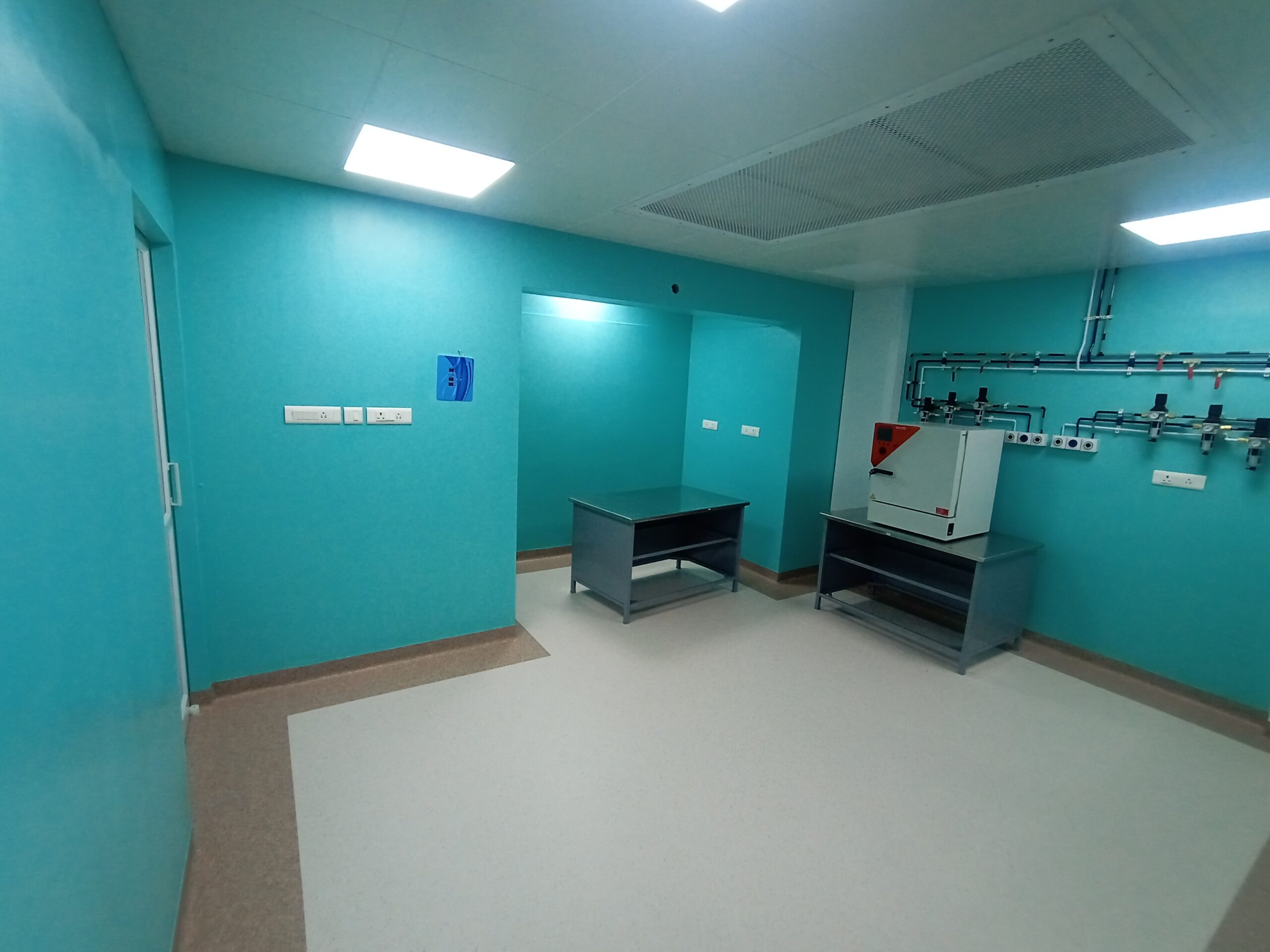

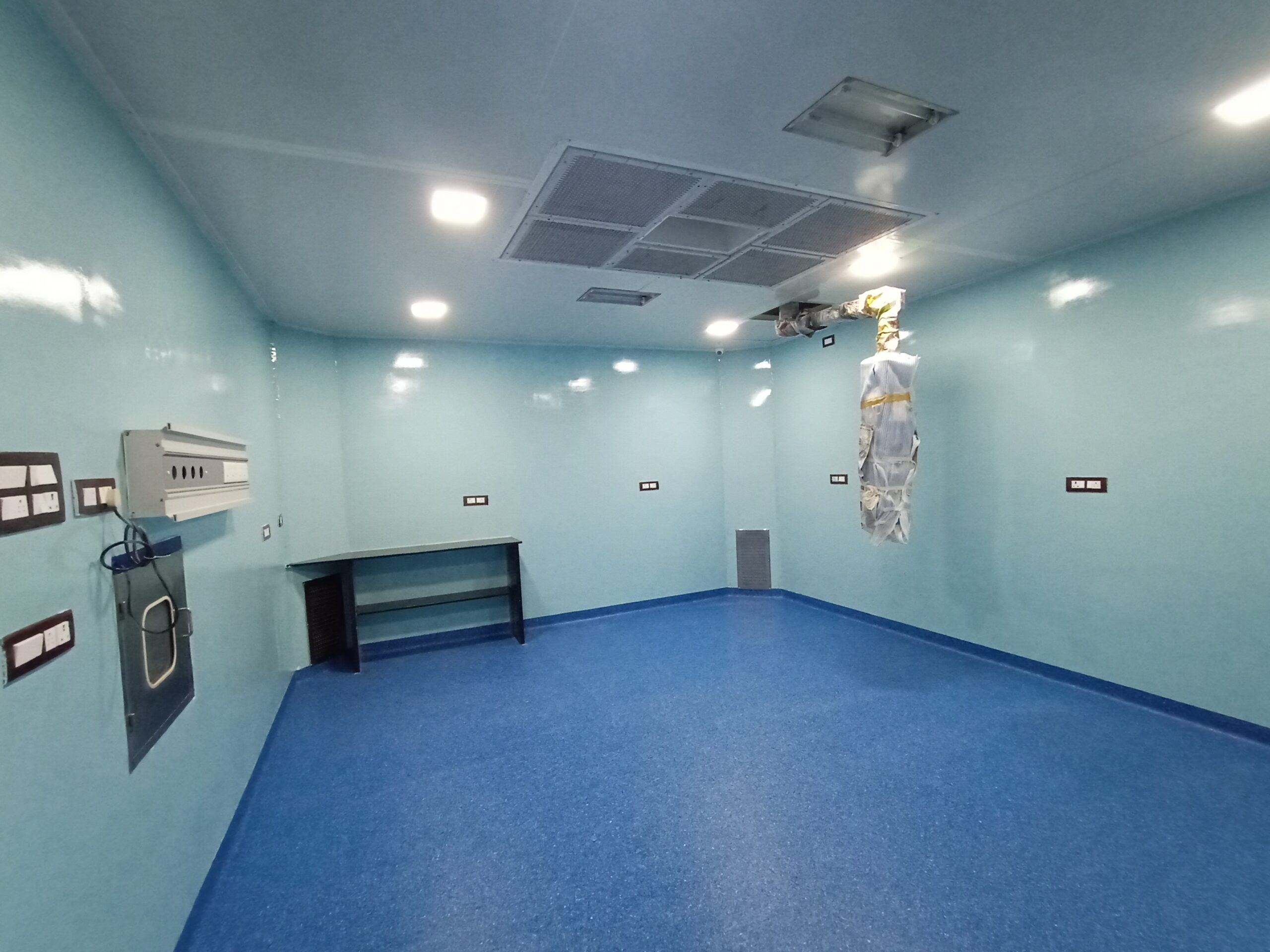

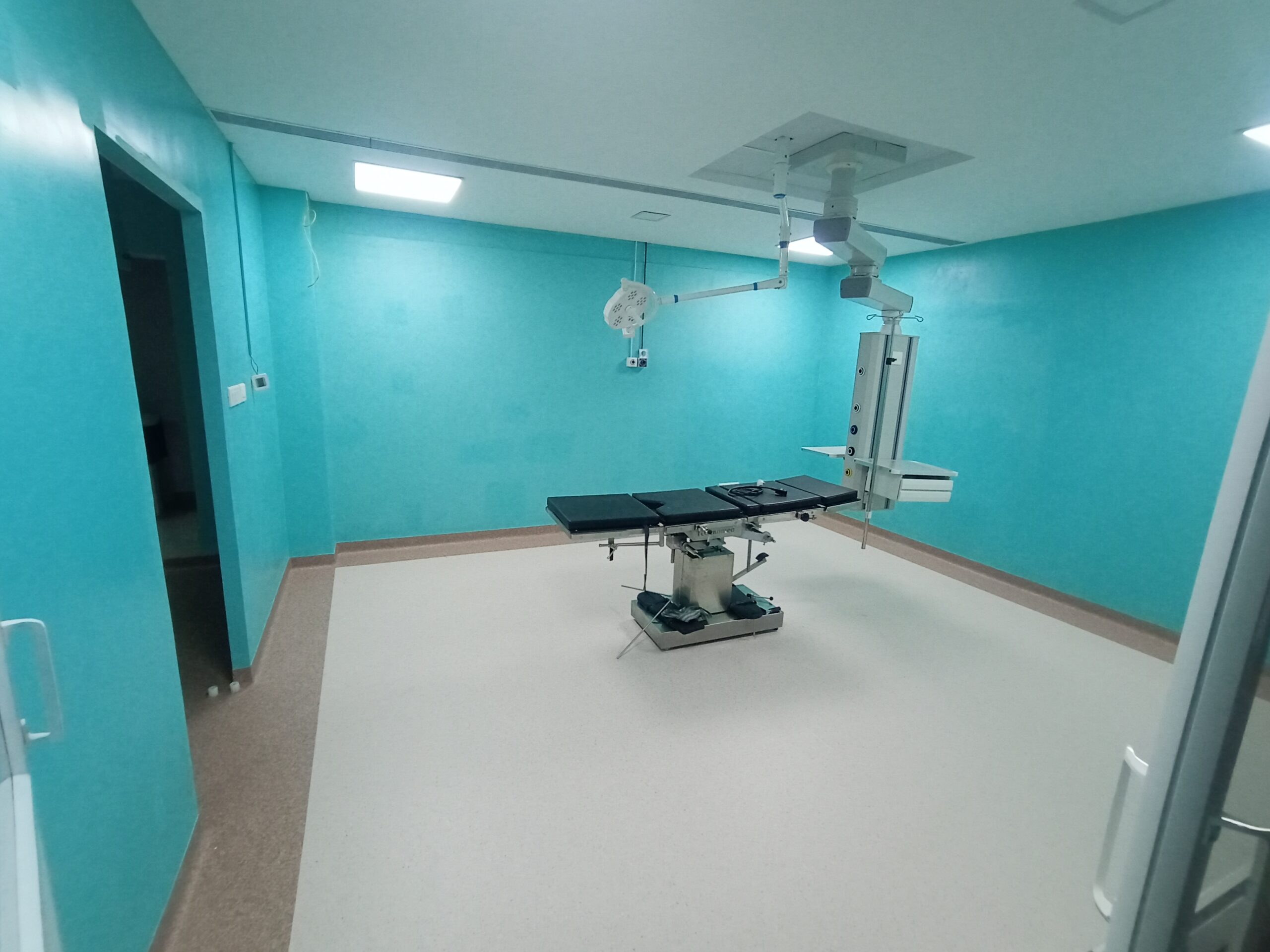

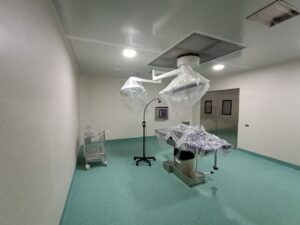

Puff Panels Specification

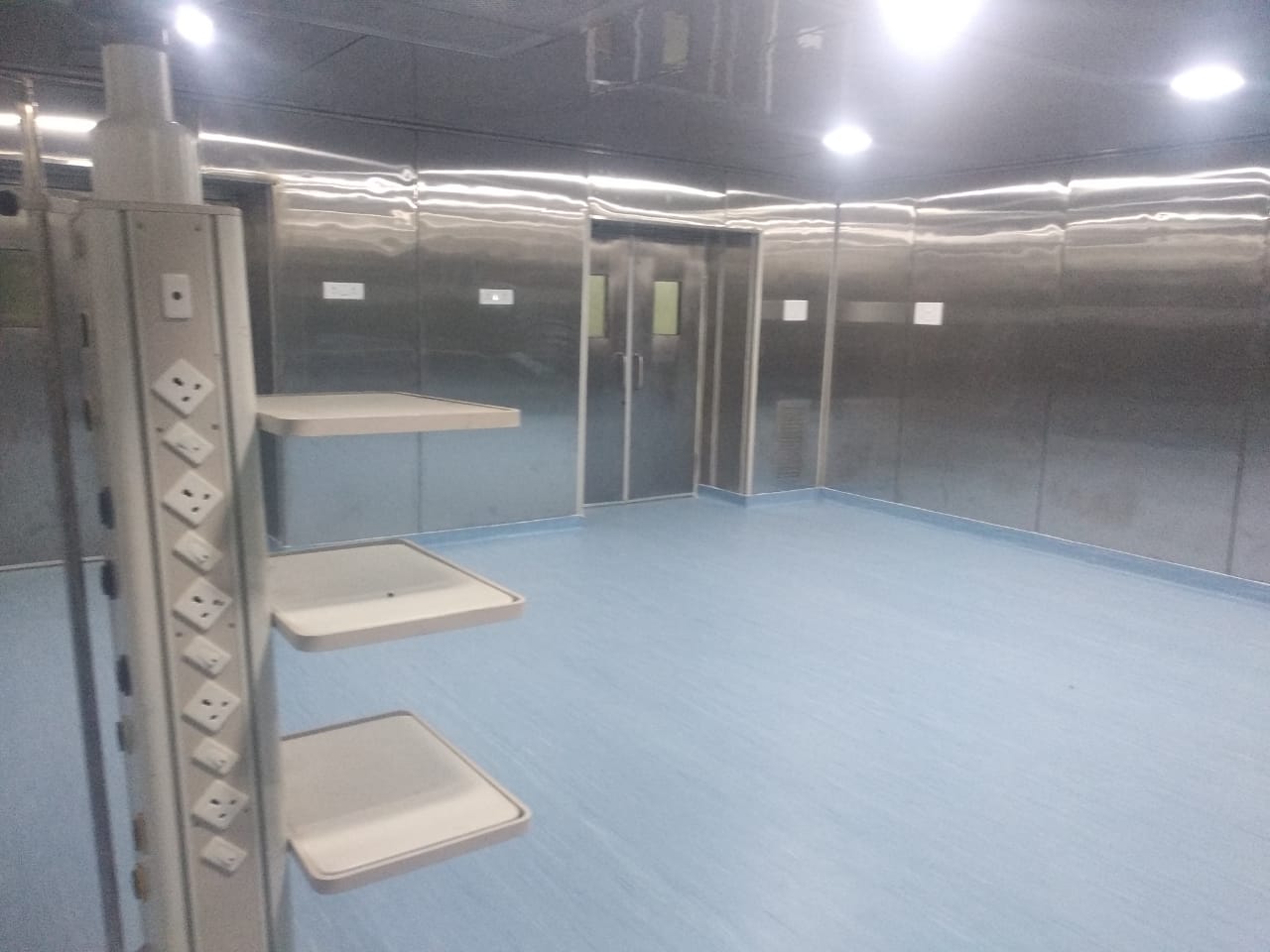

Ceiling and Wall panels
A complete range of partision walls and ceiling systems are available to meet the technical specification of controlled environment rooms
Type : Progressive / non progressive
Panel Thickness : 0/50/60/80/100mm
Skin Thickness : 0.47/0.5/0.6/0.8 mm
MOC : PPGI/ PCGI/ HPLC/GRP on Glavanized Sheets/ SS 304
Infill : 40 kg/m3 of PUF
Sealing : Caulked Silicone Sealing applied at all joints
| PANEL POLYURETHANE FOAM SPECIFICATIONS | ||
| K value (W/m² °K) | 0.43 | 0.28 |
| R value (Btu/hr/ft²/°F) | 13 | 20 |
| Materials | PPGI | |
| Density (Kg/m³) | 40±2 Kg/m² | |
| Thermal Conductivity at 10℃ mean Temperature (W/mk) | 0.023 W/mK | |
| Temperature operating range | – 40 ℃ to +80 ℃ | |
| Compressive Strength at 10% Deformation (Kg/cm²) | 2.1 | |
| Bending Strength (Kg/cm²) | 4 | |
| Tensile Strength (Kg/cm²) | 3.7 | |
| Adhesive Strength (Kg/cm²) foam to steel | 2.9 | |
| Water Absorption (Volume %) | 0.2% at 100%RH | |
| Resistance to saline mist | > 500 h (ECCA T8) | |
| Resistance to moisture | > 1000 h (ASTM D2247) | |
| Closed Cell Content(%) | 92-95% | |
Product Gallery

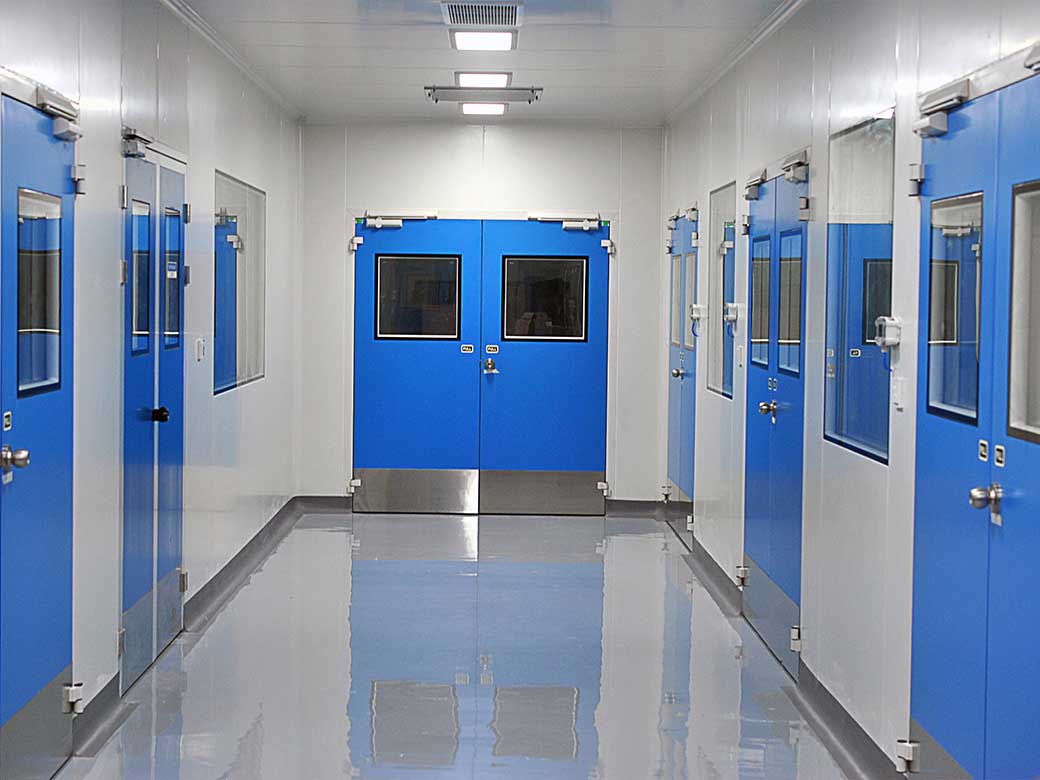

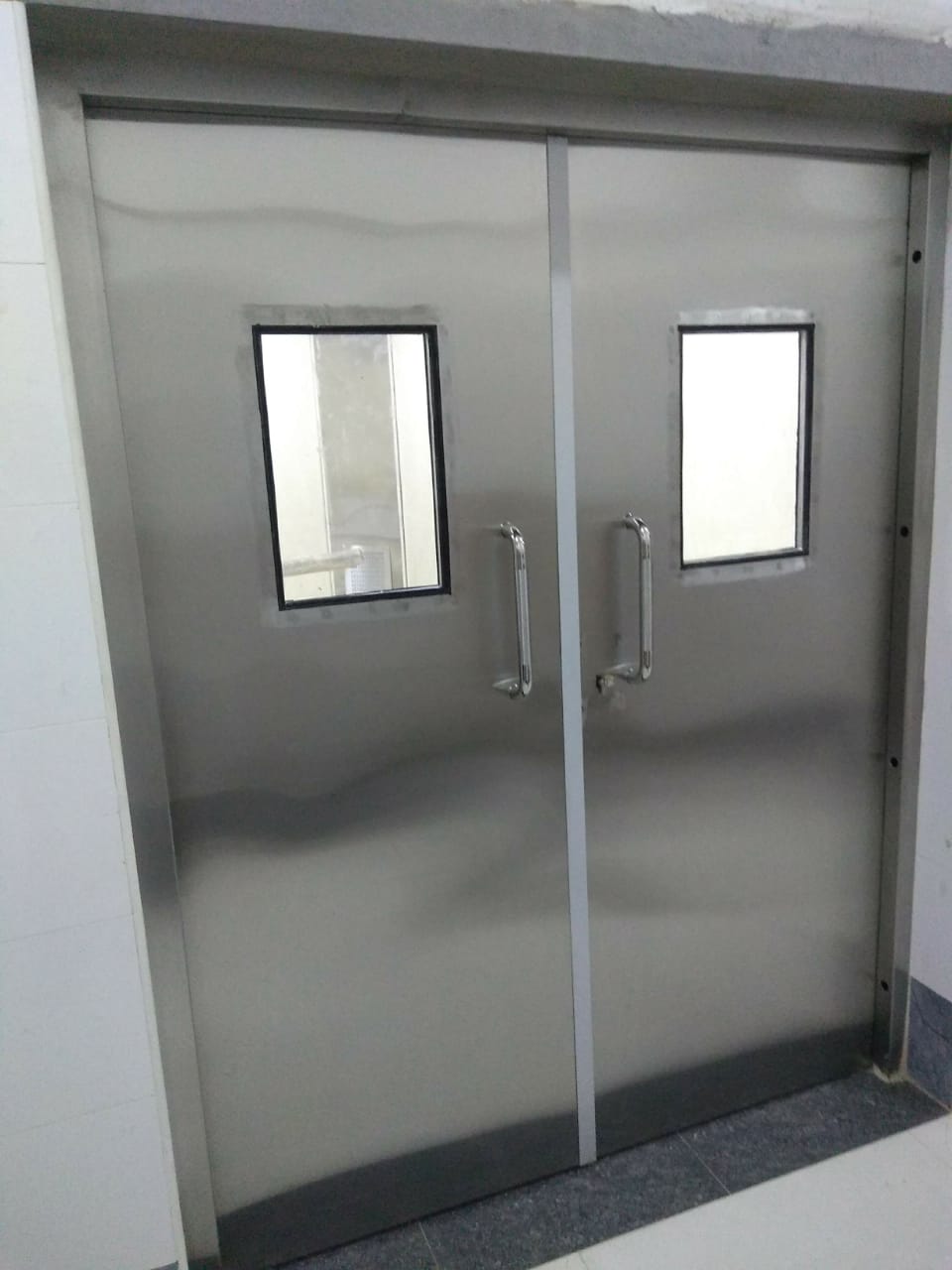

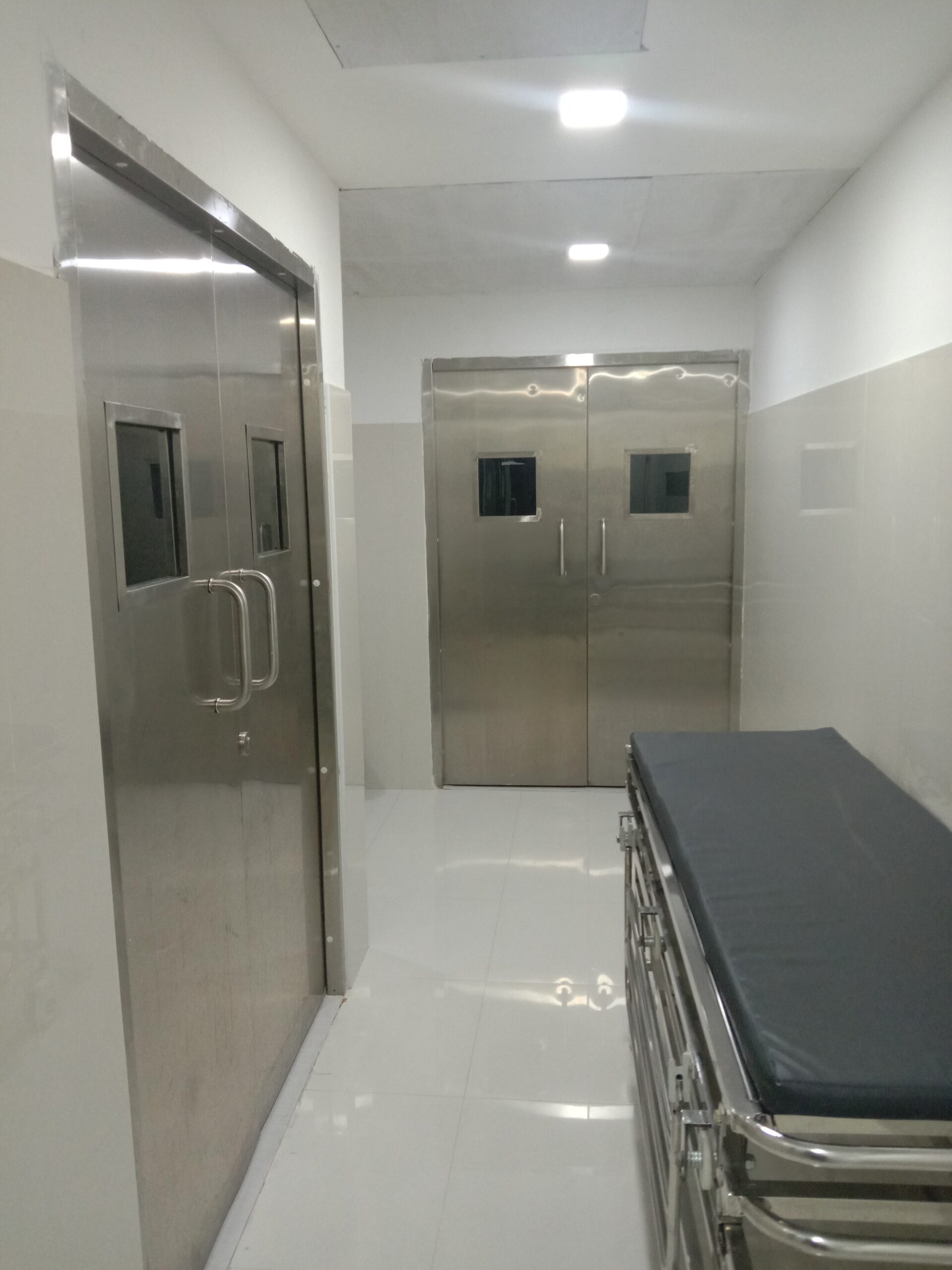

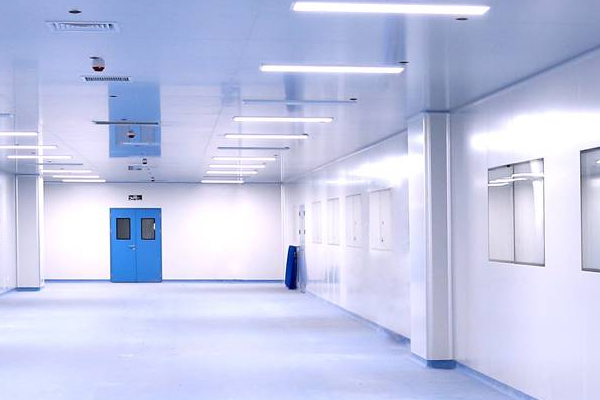

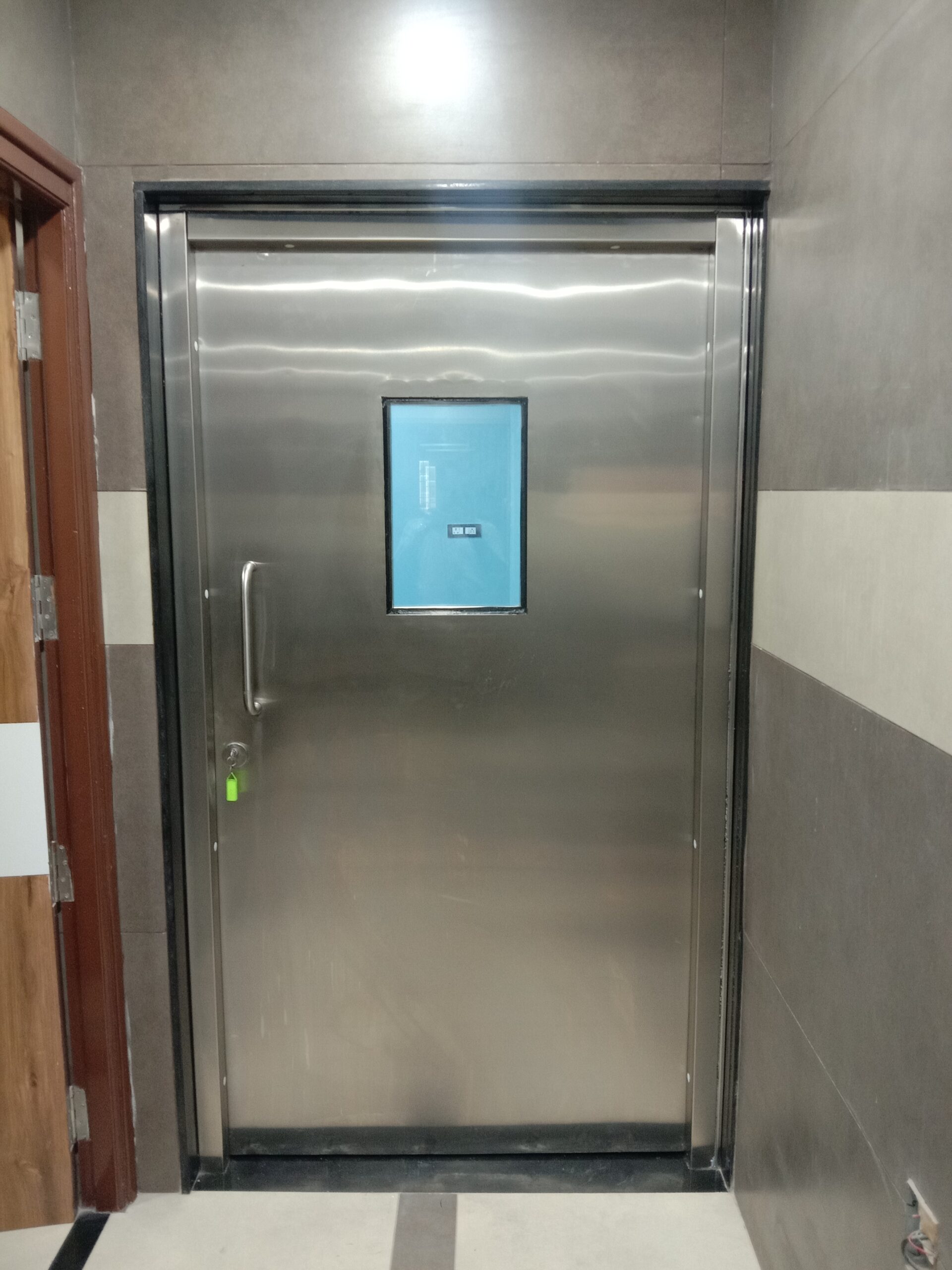

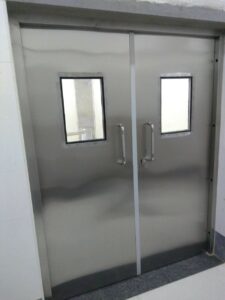

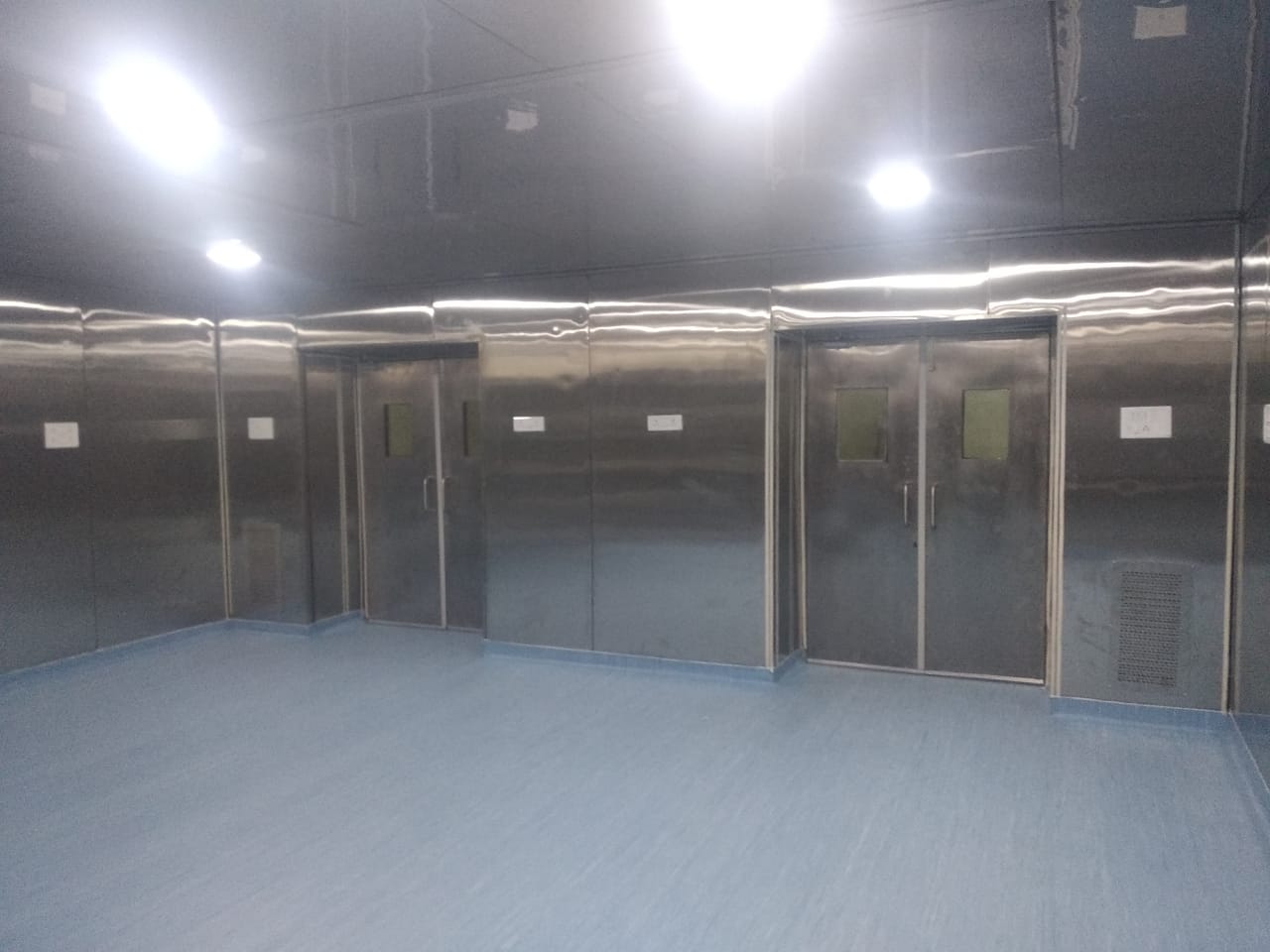

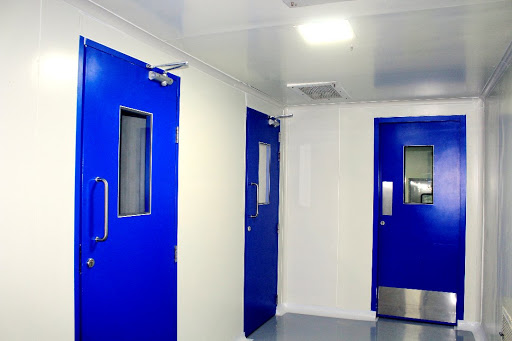

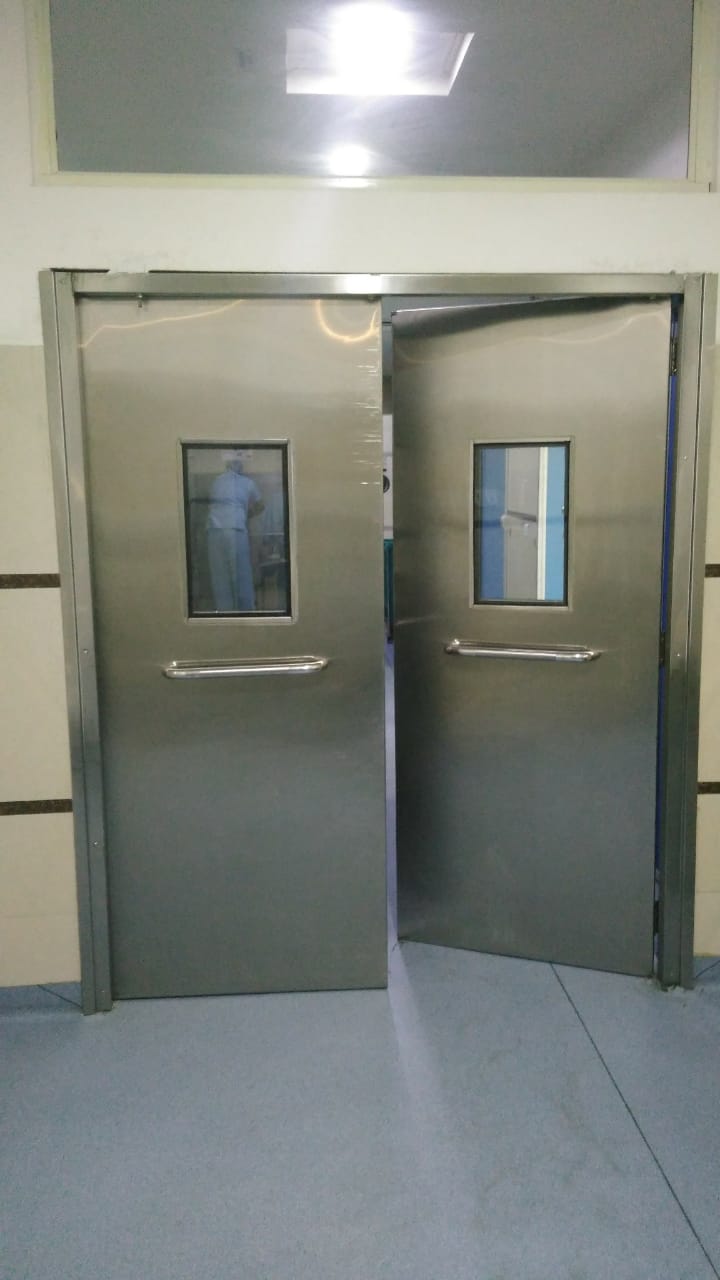

Clean Room Doors Specification
PCGI Double Door |
|
Wall Opening Width(W) in mm | 1500 |
Wall Opening Height (H) in mm | 2100 |
Frame Size Width (W) in mm | 1490 |
Frame Size Height (H) in mm | 2095 |
Materail | Glavanized Iron |
Finish Color | Half White 9002 Grade |
Door Type | Inner Swing Door |
Fire Rating (1 Hr./2 Hrs./30 Min.) | 2 Hrs |
Single / Double / Triple (Equal / Unequal) | Double Leaf / Equal |
Shutter thickness | 46mm |
Shutter Sheet Thickness | 0.8 mm |
Frame Sheet Thickness | 1.2 mm |
Infill Material Of the Shutter | Honey core/ Puff |
Profile | 100 x 57 |
Hardwares | Qty |
Hinges 304 SS Finish(HG1253SS) -100x74x3mm – Dorma | 6 |
Door Closer TS68 80 Capacity – Dorma | 1 |
Dead Lock 706 with 70mm Cylinder both side keys – Dorma | 1 |
D-Handle TGID300 22x300mm SS 304 Finish – Dorma | 2 |
Clear Glass of size 300mm (W) x 450 mm (H) Double Glass | 2 |
Door bottom Drop Seal | 2 |
Concealed Tower Bolt 300mm | 1 |
Smoke Seal Self Adhessive ( in mtrs) | 6 |

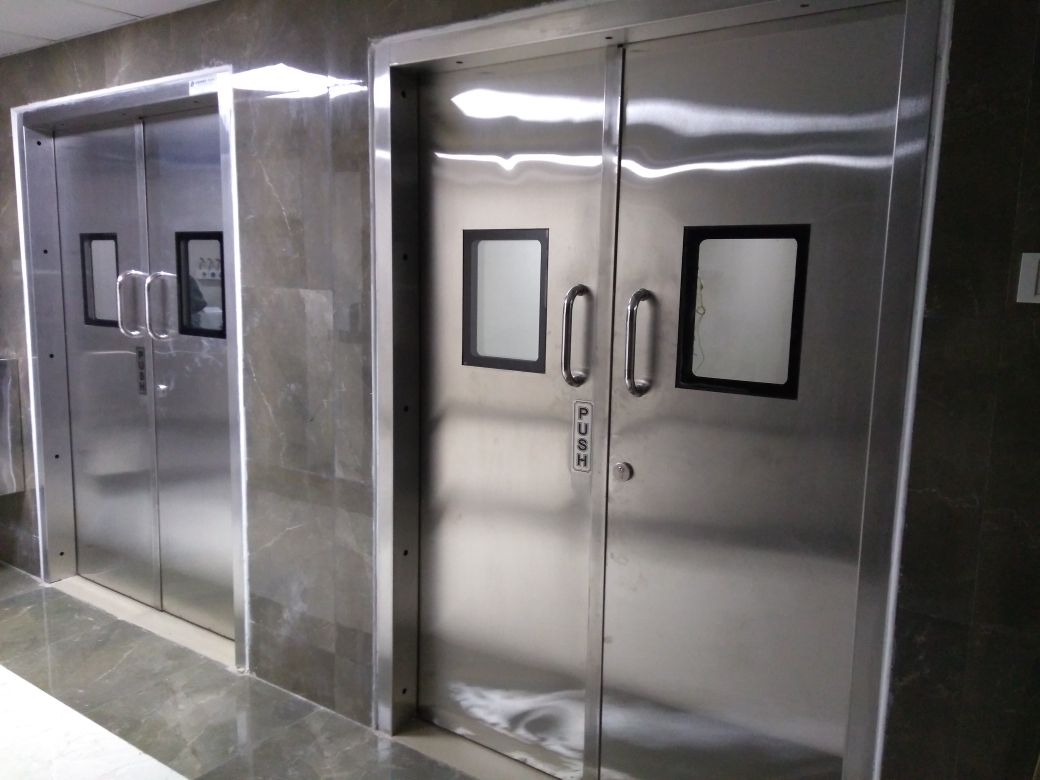

SS Double Door |
|
Wall Opening Width(W) in mm | 1500 |
Wall Opening Height (H) in mm | 2100 |
Frame Size Width (W) in mm | 1490 |
Frame Size Height (H) in mm | 2095 |
Materail | SS 304 |
Finish | Matt finish |
Door Type | Inner Swing Door |
Fire Rating (1 Hr./2 Hrs./30 Min.) | 2 Hrs |
Single / Double / Triple (Equal / Unequal) | Double Leaf / Equal |
Shutter thickness | 46mm |
Shutter Sheet Thickness | 0.8 mm |
Frame Sheet Thickness | 1.2 mm |
Infill Material Of the Shutter | Honey core/ Puff |
Profile | 100 x 57 |
Hardwares | Qty |
Hinges 304 SS Finish(HG1253SS) -100x74x3mm – Dorma | 6 |
Door Closer TS68 80 Capacity – Dorma | 1 |
Dead Lock 706 with 70mm Cylinder both side keys – Dorma | 1 |
D-Handle TGID300 22x300mm SS 304 Finish – Dorma | 2 |
Clear Glass of size 300mm (W) x 450 mm (H) Double Glass | 2 |
Door bottom Drop Seal | 2 |
Concealed Tower Bolt 300mm | 1 |
Smoke Seal Self Adhessive ( in mtrs) | 6 |
Product Gallery

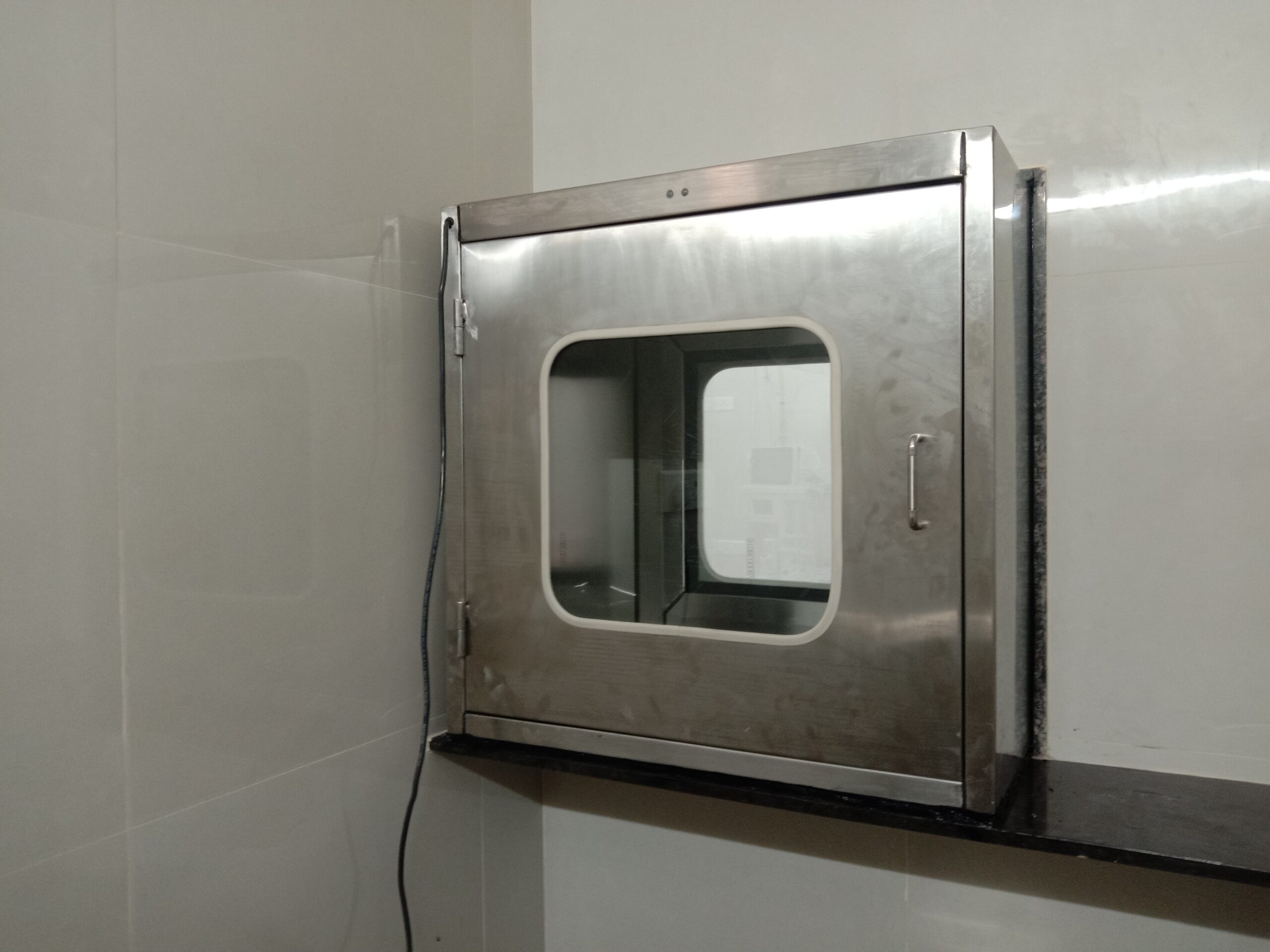

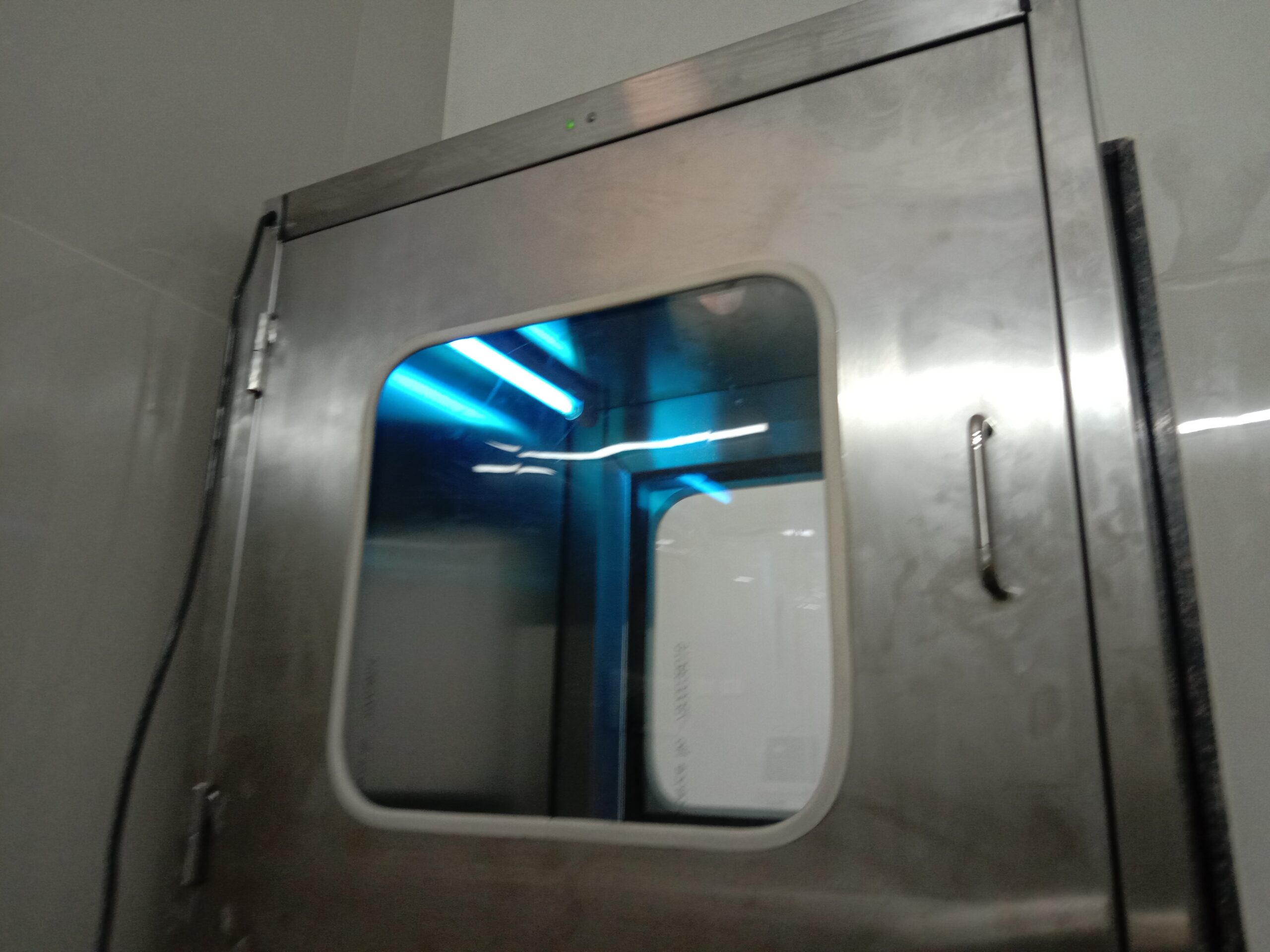

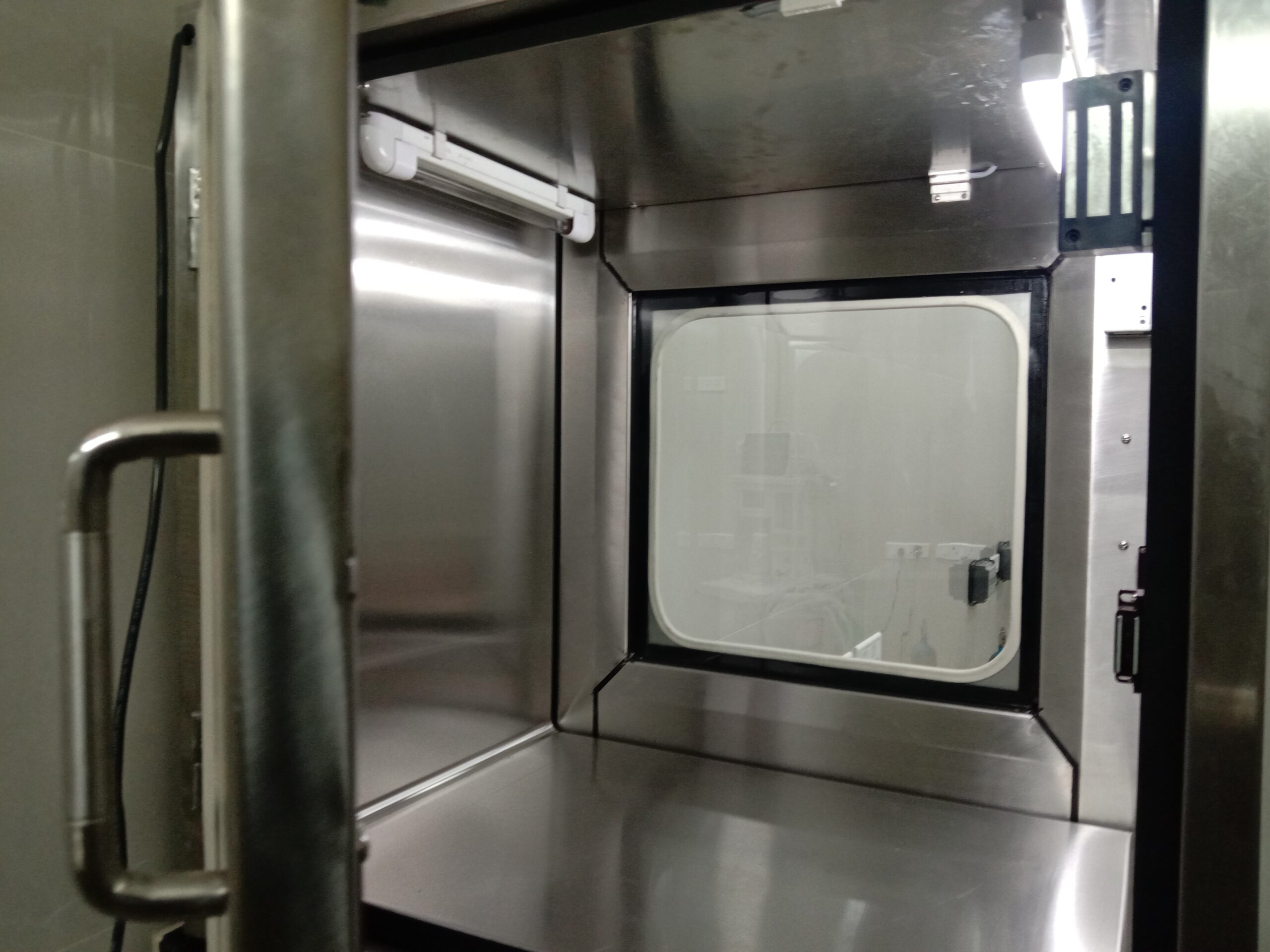

Pass Box Specification
Product | Static Pass Box |
Construction | Stainless Steel 304 / 316 / 316L |
Door | Solid door w/ mechanical or electrical interlocked |
Window | Tempered Glass |
Accessories | Hour meter |
Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps |
Window | Tempered Glass |
Power Supply | 220 / 230 Volts |
Product Gallery

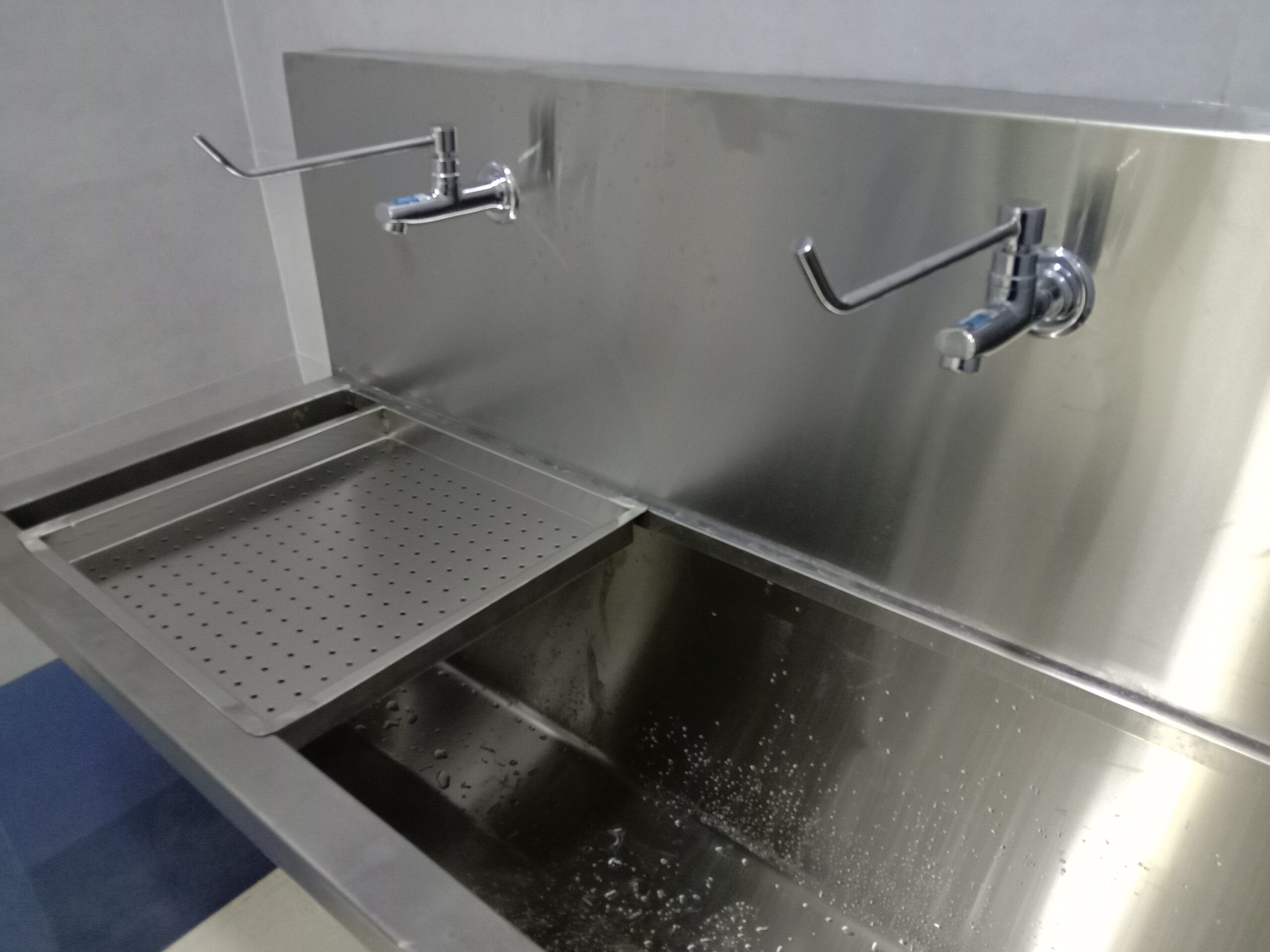

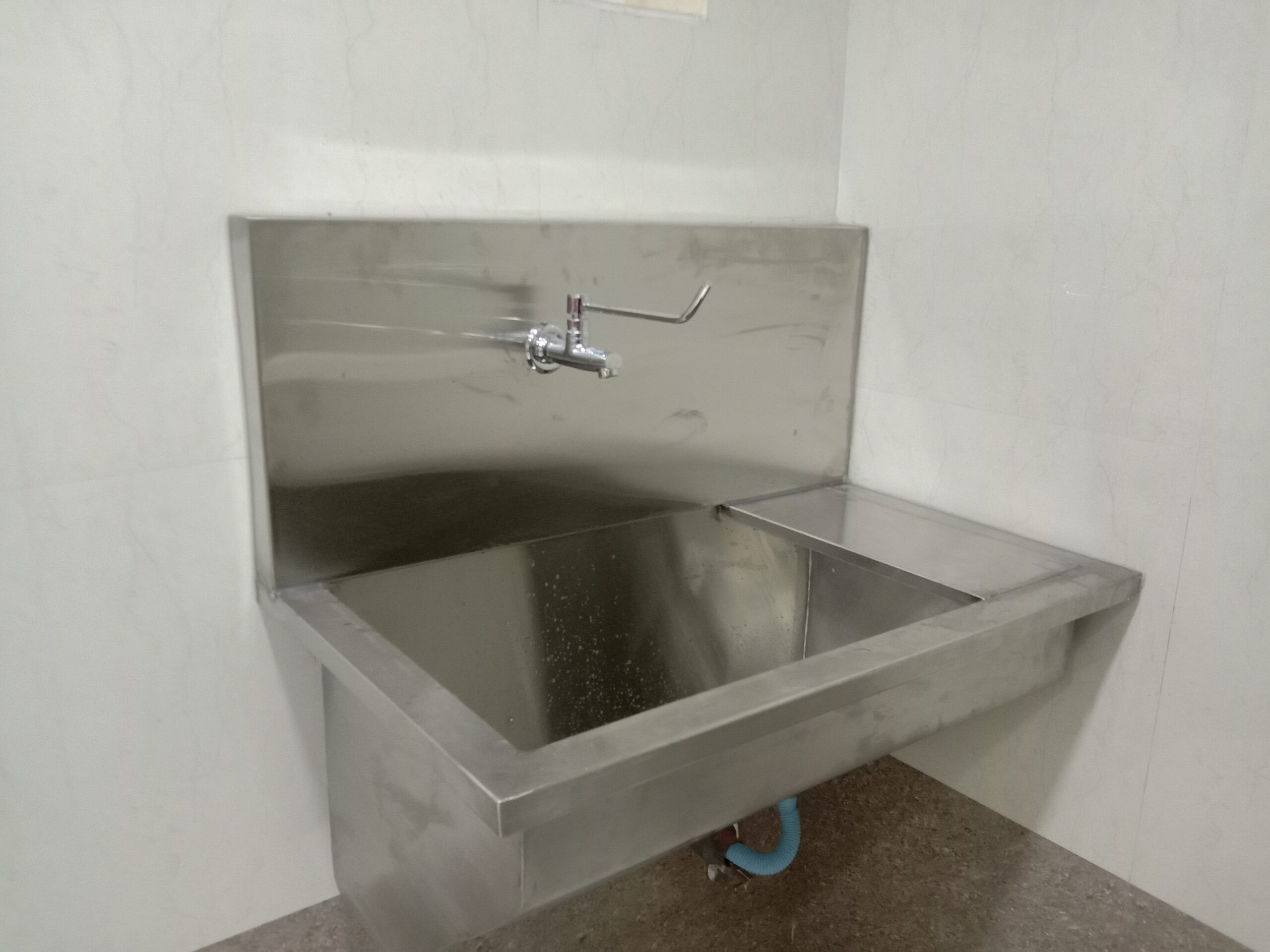

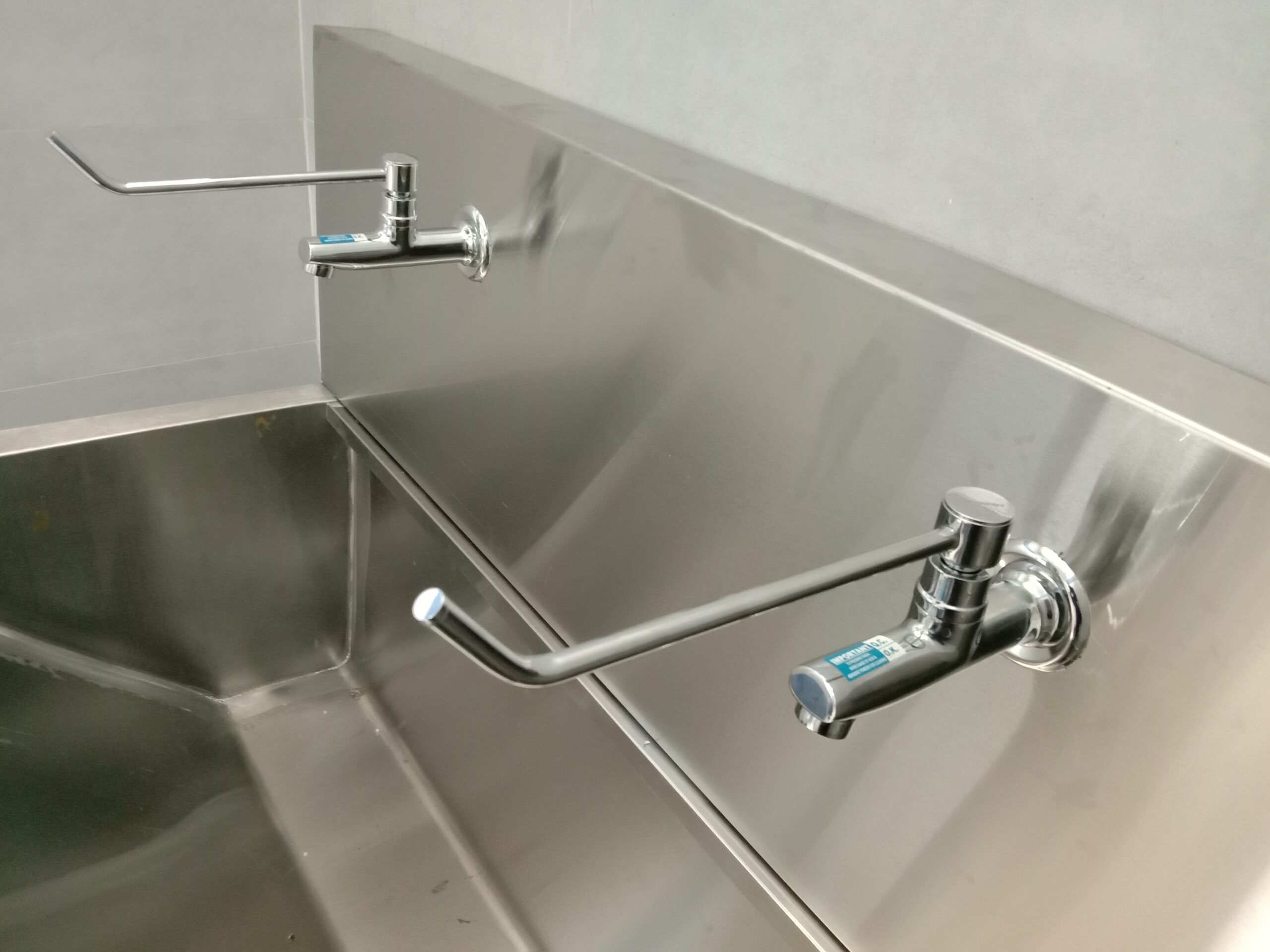

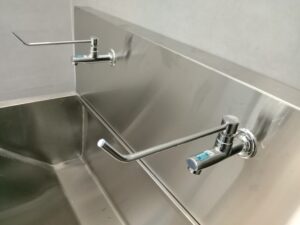

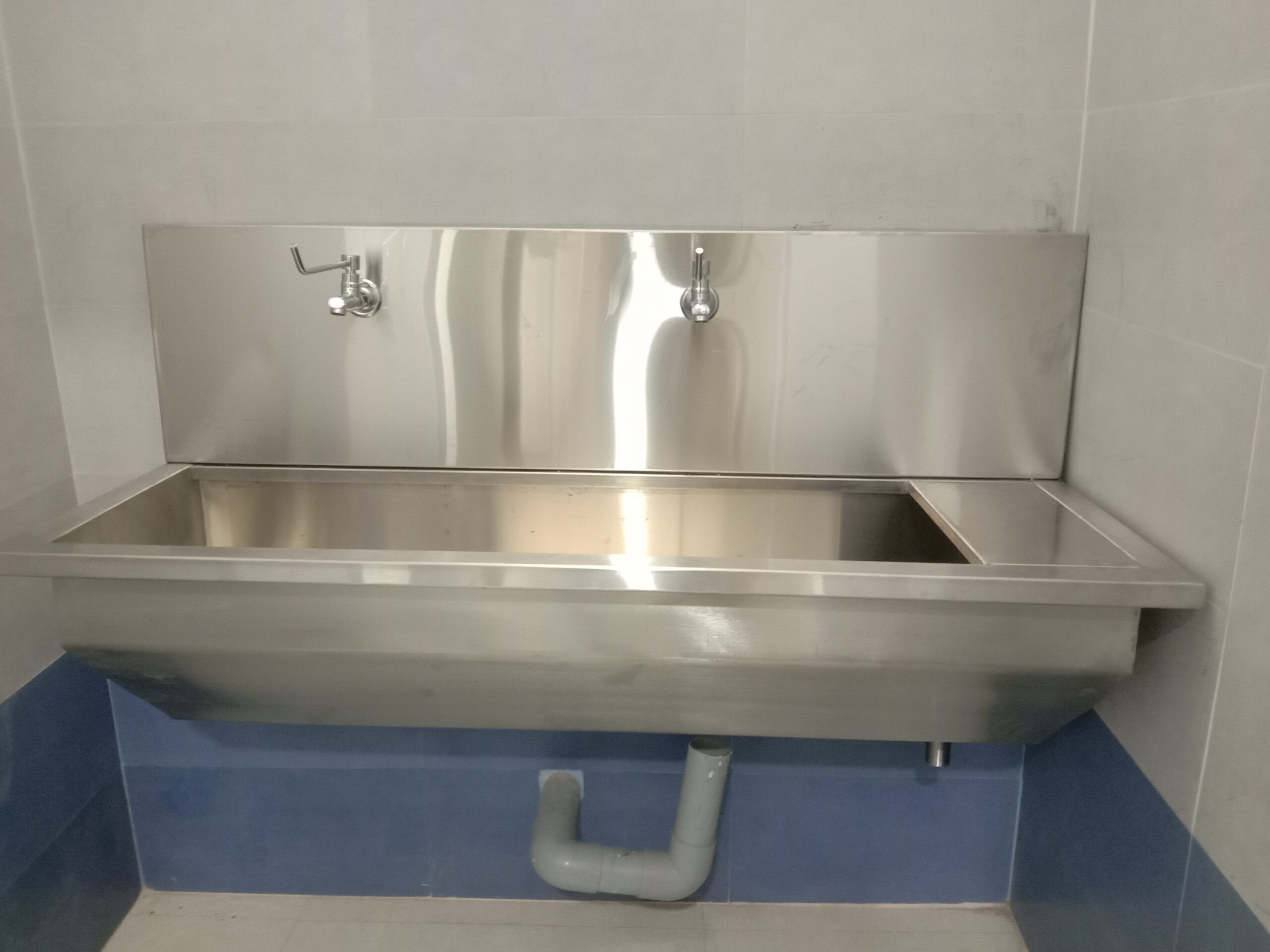

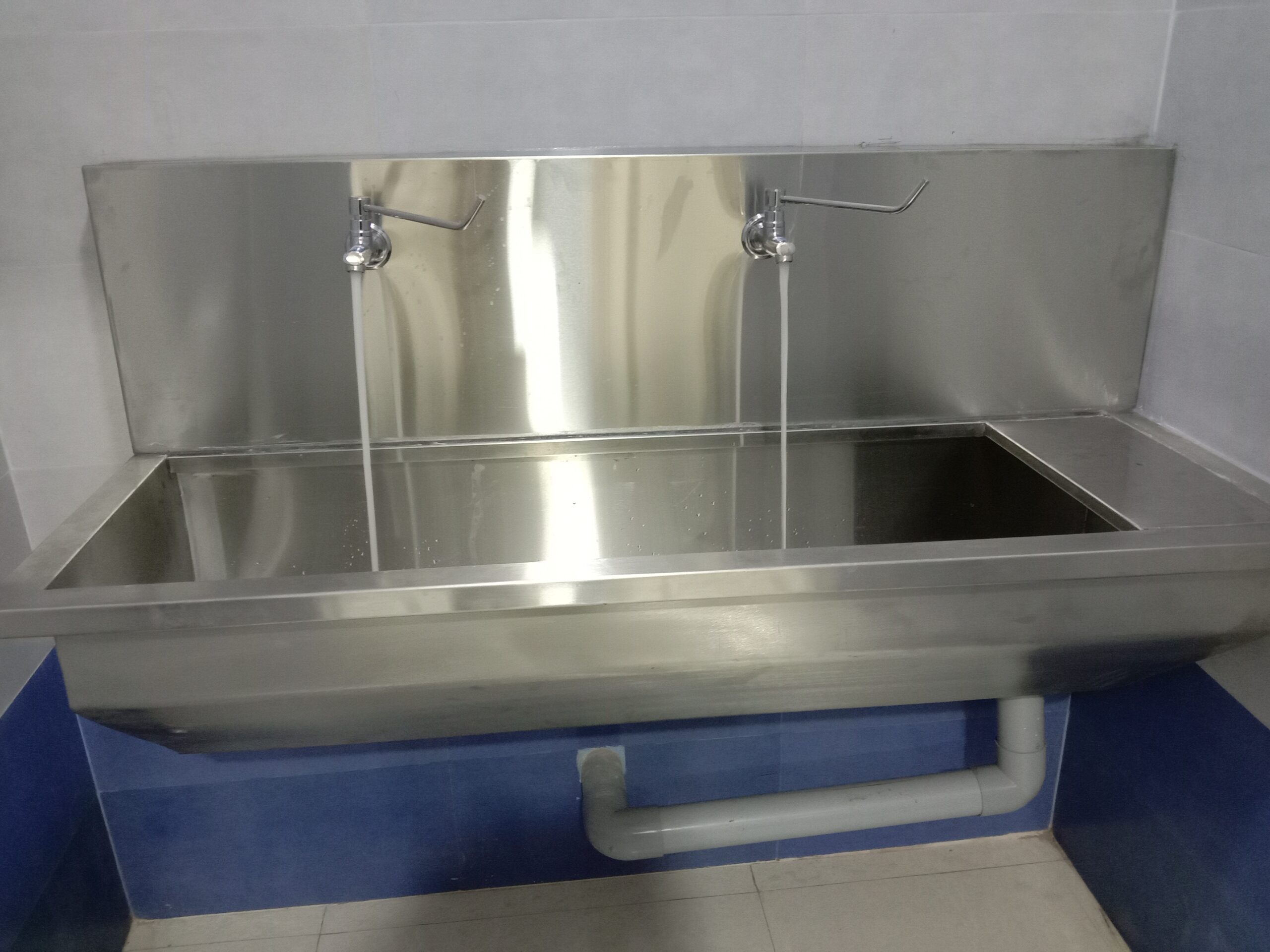

Scrub Station
Product Gallery

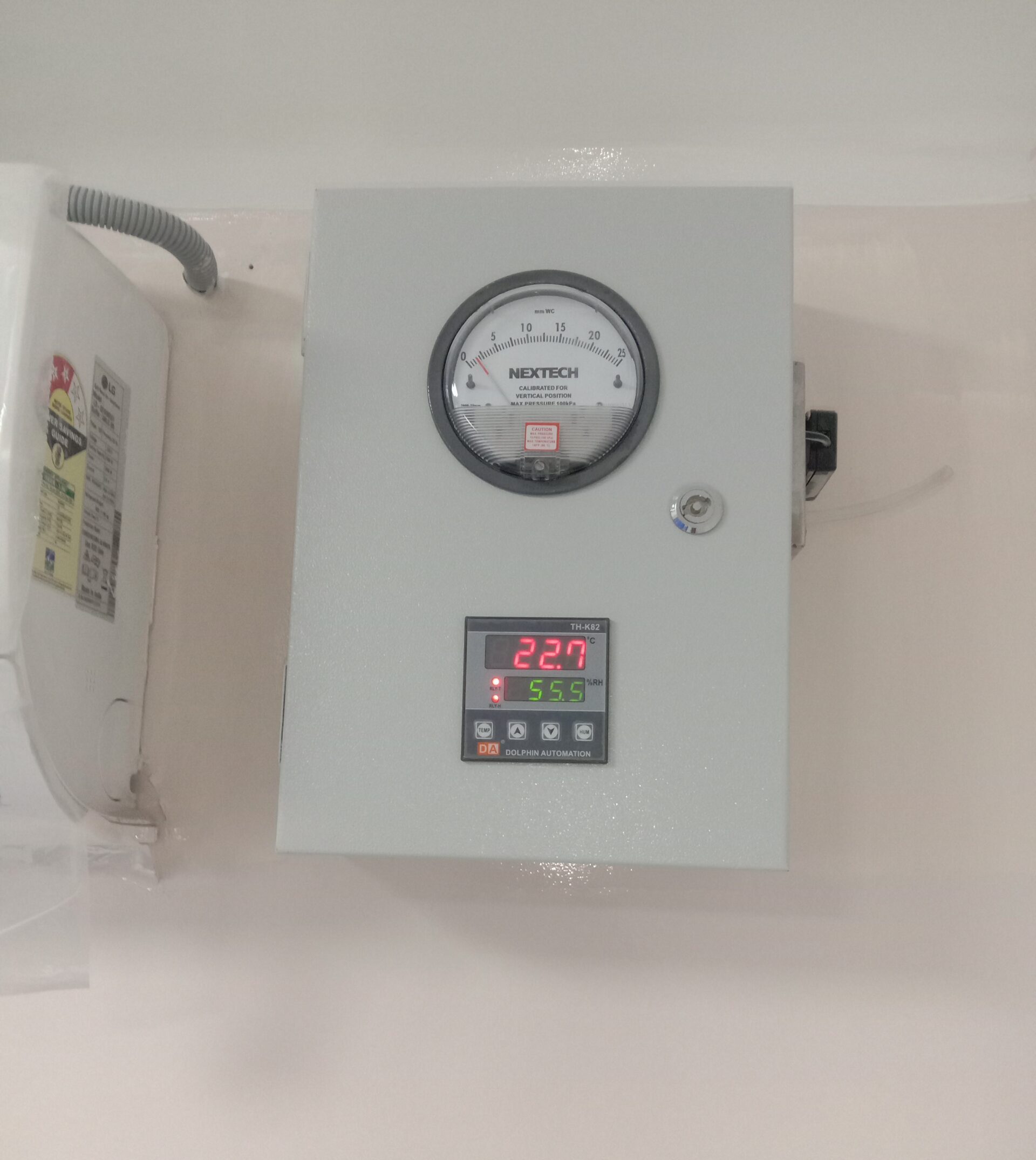

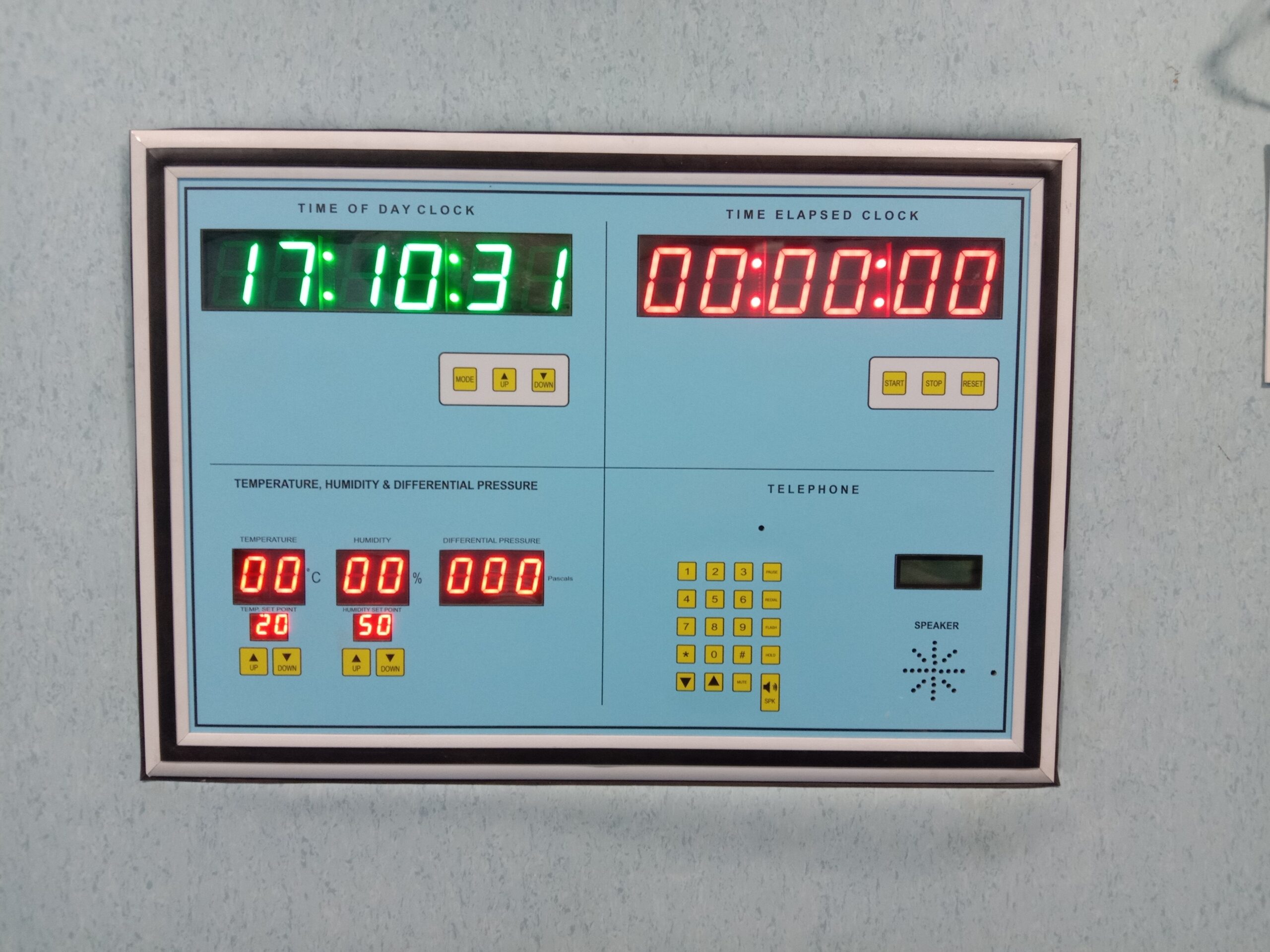

Surgical Control Panel Specification
Dimension | 640mm* 640* 110mm |
Circuit Voltage | 24V DC/Single Phase |
Digital Clock
| Green Color Display( 1.8″ character HH:MM:SS) ( Set-up-down)
|
Elapsed Clock | Red Color Display( 1.8″ character HH:MM:SS) ( Start-Stop-Reset)
|
Light Control | 3 Channels |
Temp/Humidity | Display Temp and Humidity with controlling Outputs |
Hans Free Phone | Dialing & Receiving call with caller ID |
Dimension | 640mm* 640* 110mm |
Circuit Voltage | 24V DC/Single Phase |
Digital Clock
| Green Color Display( 1.8″ character HH:MM:SS) ( Set-up-down)
|
Elapsed Clock | Red Color Display( 1.8″ character HH:MM:SS) ( Start-Stop-Reset)
|
Light Control | 3 Channels |
Temp/Humidity | Display Temp and Humidity with controlling Outputs |
Gas Alarm | 5 Channels (4Gases + 1Vaccum) (High/Low/Normal Indication) |
Hans Free Phone | Dialing & Receiving call with caller ID |
Product Gallery

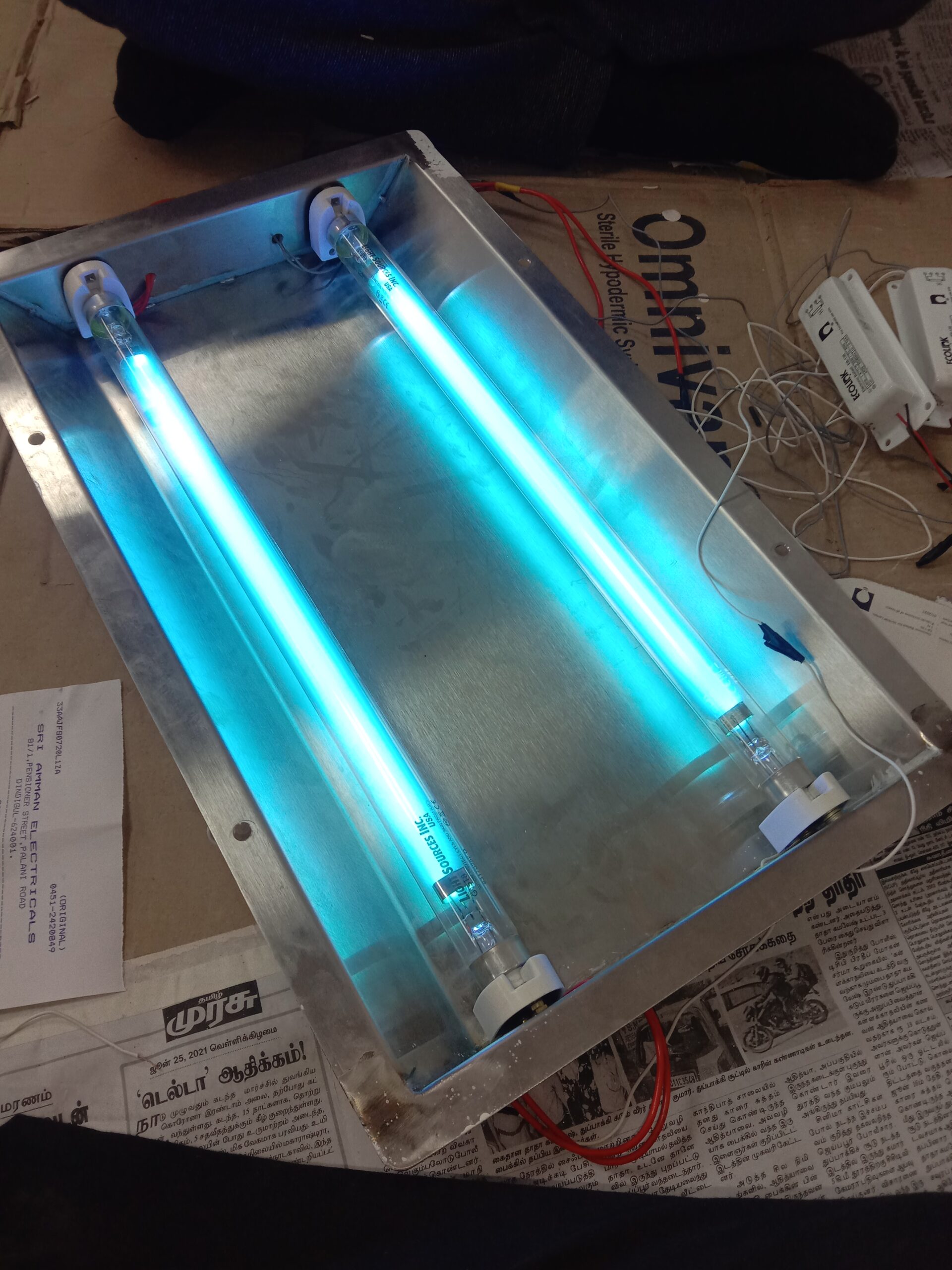

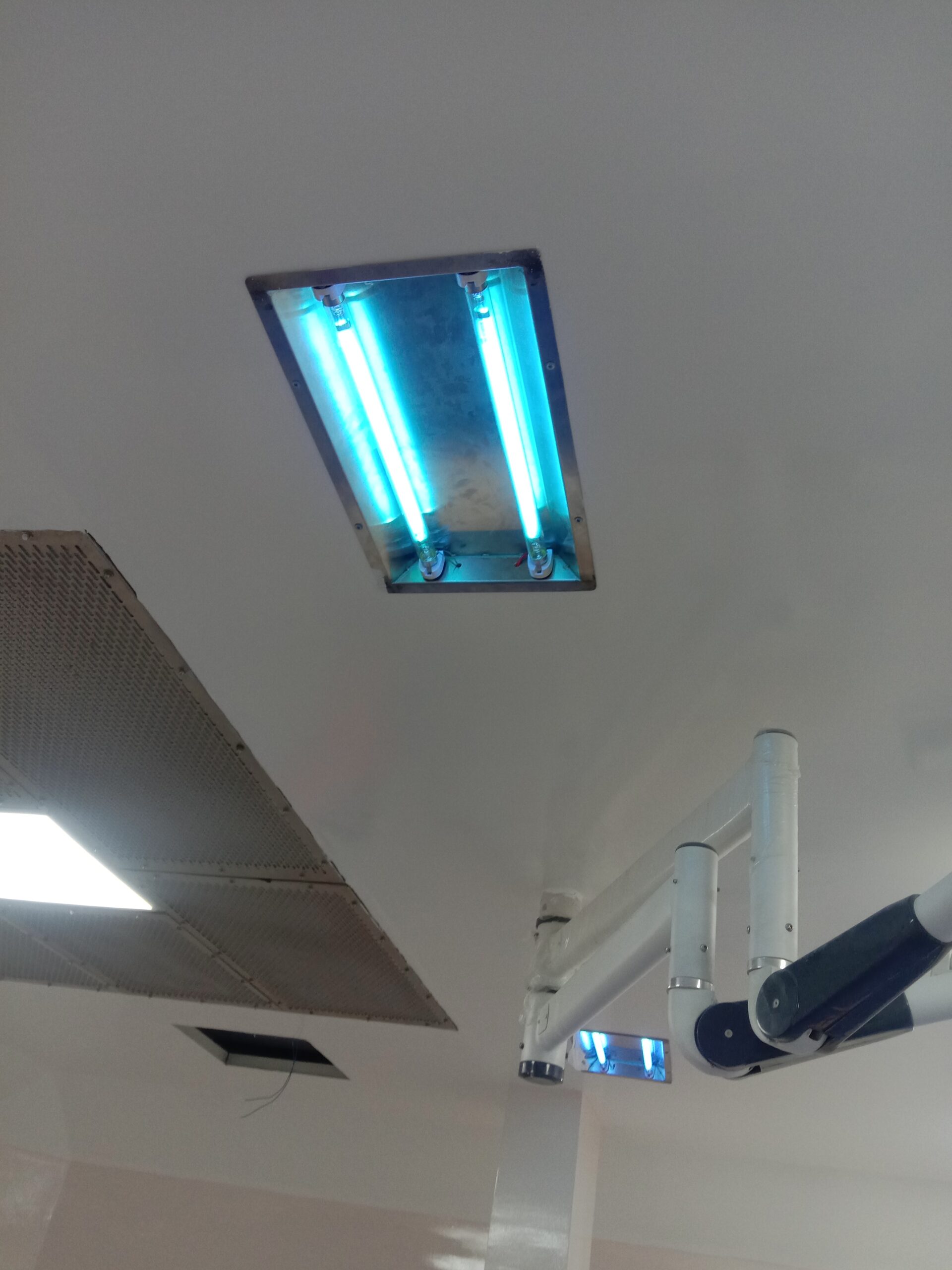

UV lights
Product Gallery

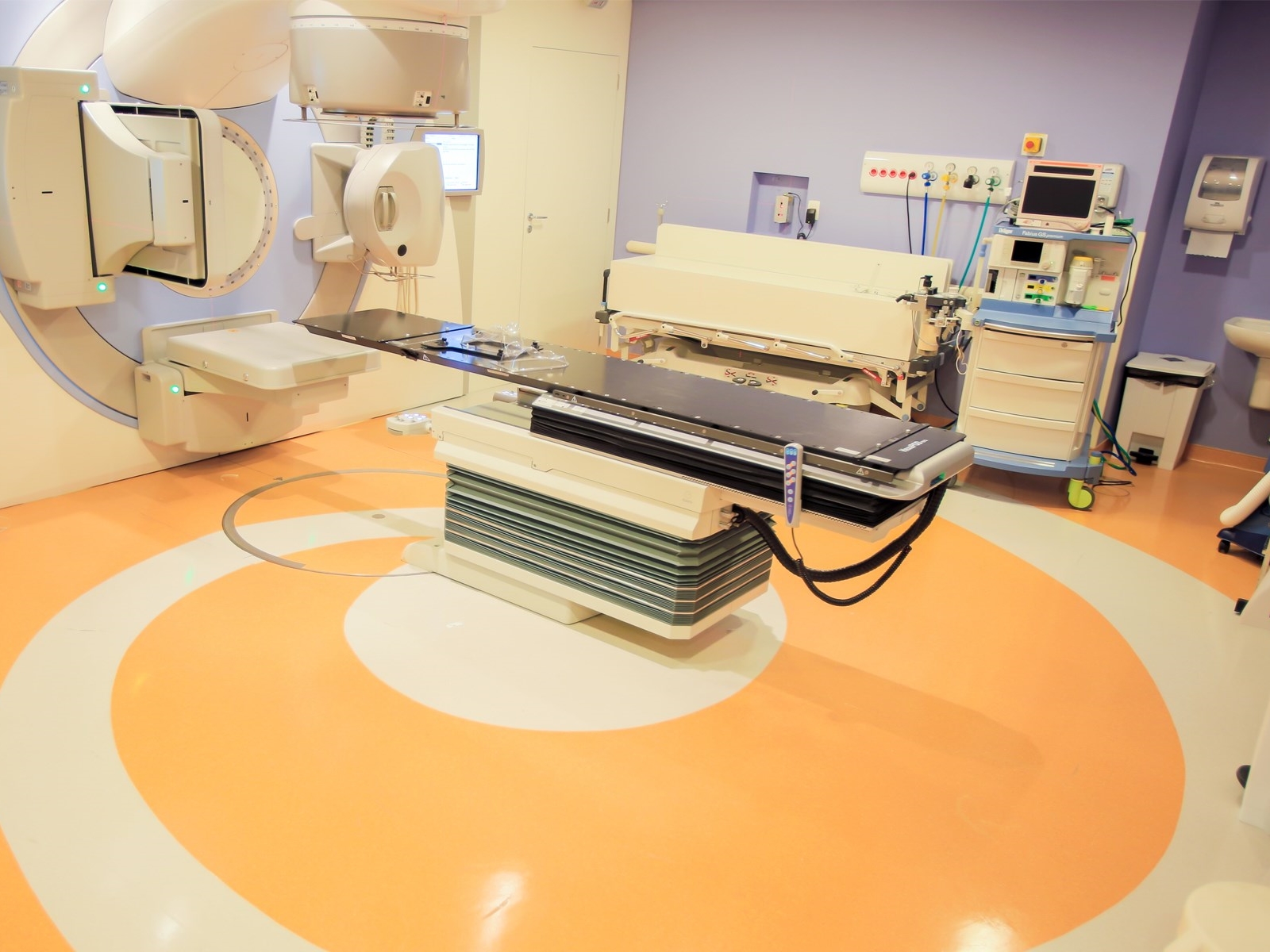

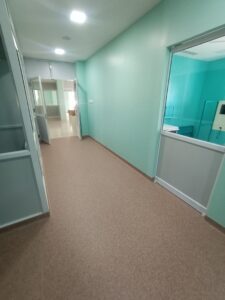

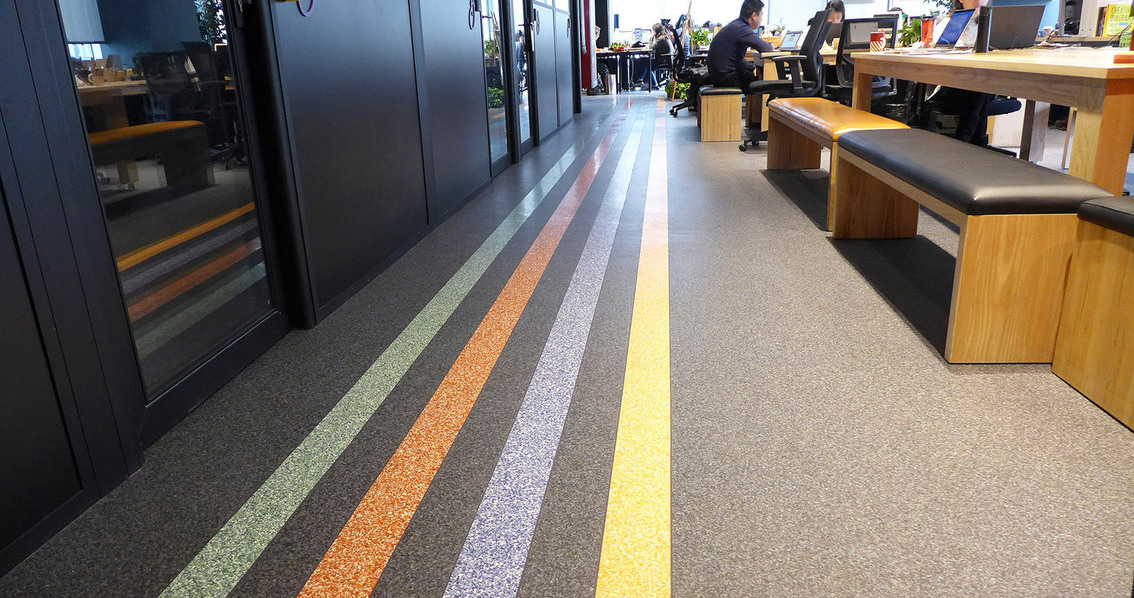

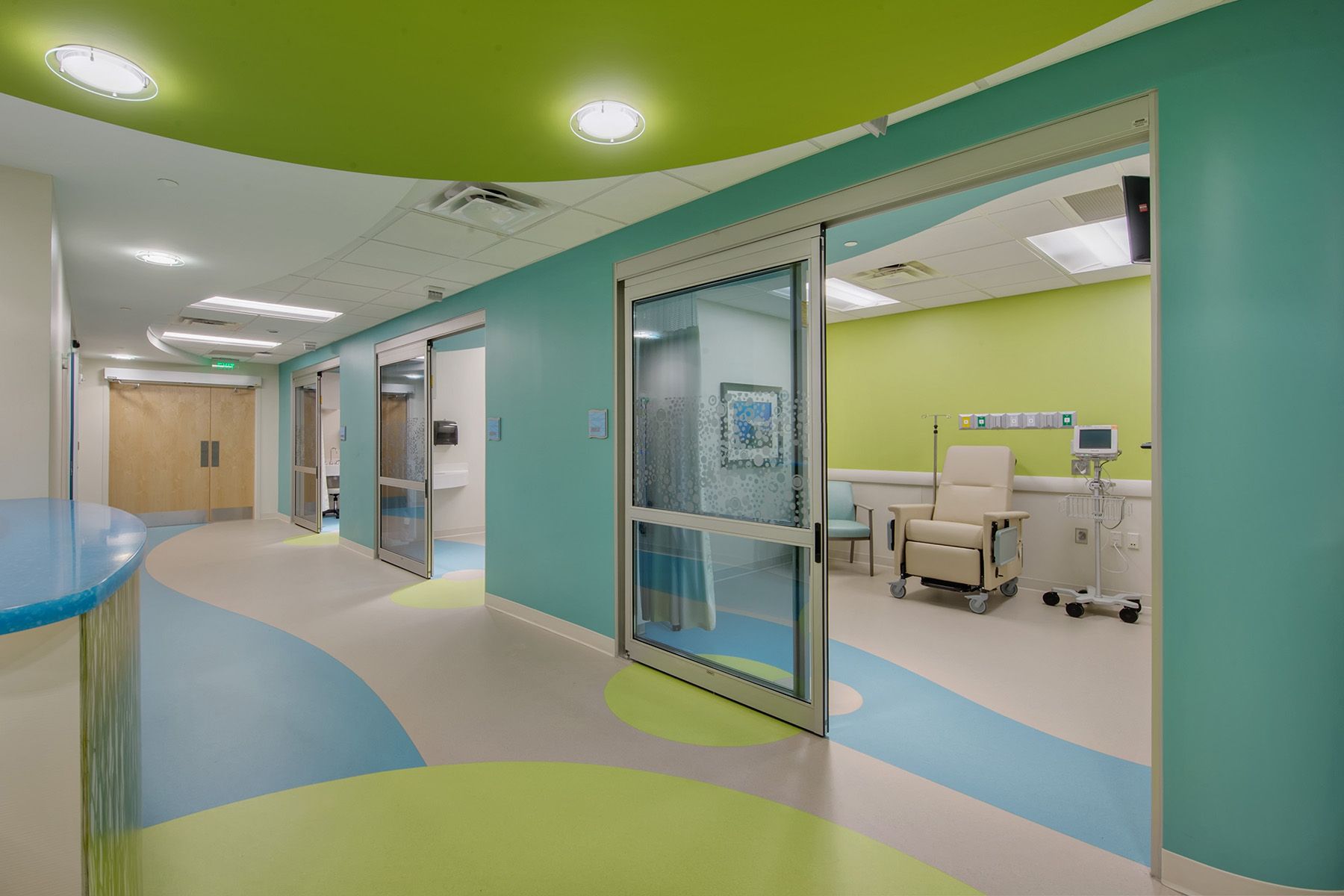

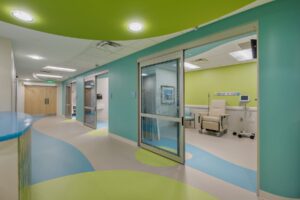

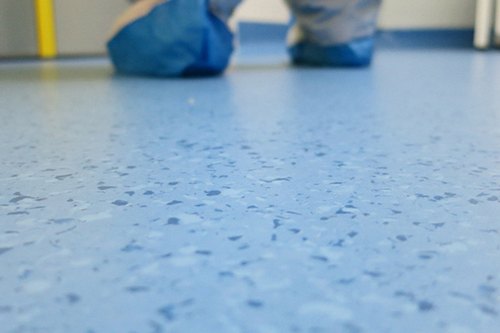

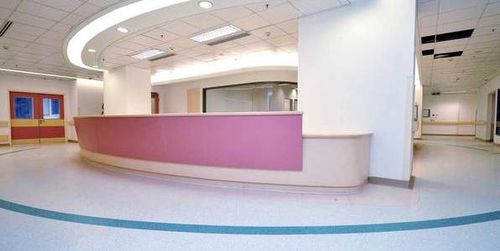

Vinyl Wall Flooring
Product Gallery

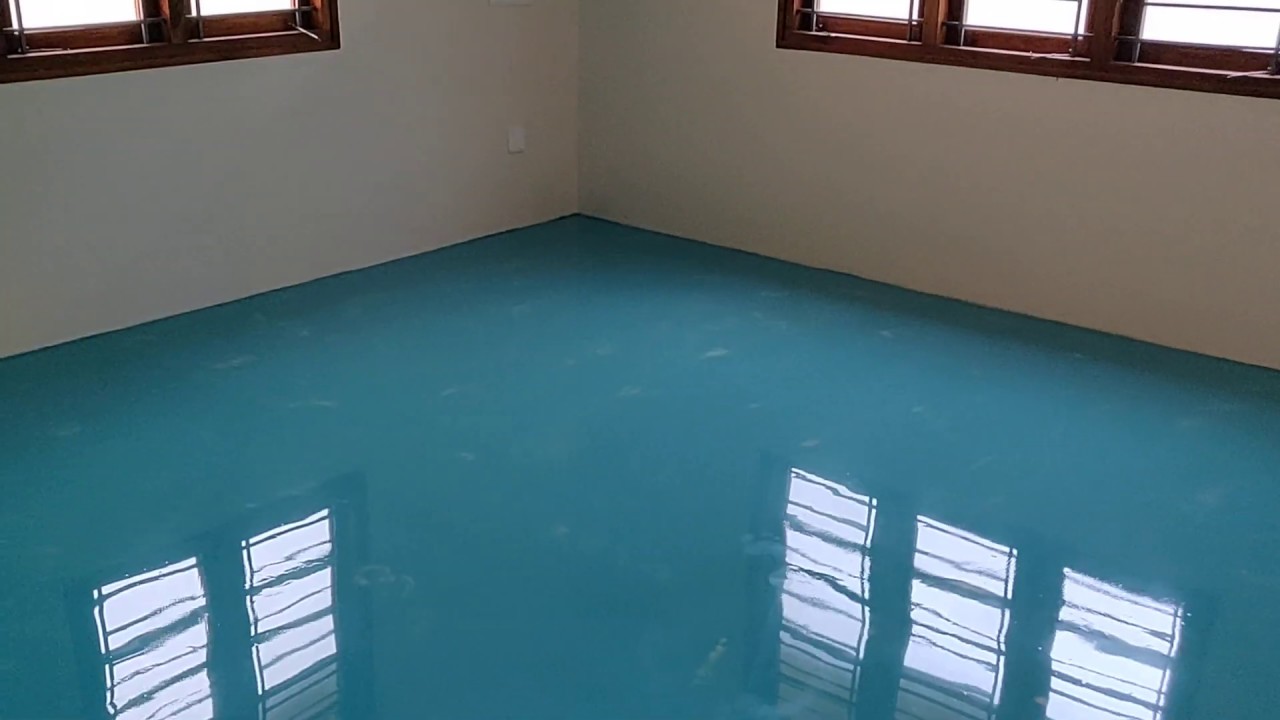

Epoxy and PU Wall
